Kanak Fittings stands out as a top-notch manufacturer and supplier of high-quality Super Duplex Steel UNS S32750 Forged Fittings right here in Dubai, UAE. Known for their incredible durability and resistance to corrosion, these fittings are crafted to handle the tough demands of industries such as oil and gas, marine, and petrochemicals. By blending cutting-edge technology with global quality standards, Kanak Fittings ensures that their products deliver long-lasting performance. With a strong emphasis on precision and customer satisfaction, the company has built a reputation as a reliable partner for cost-effective piping solutions in the region.
Specifications : ASTM A182 / ASME SA182
Size : 1/2″NB TO 4″NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.

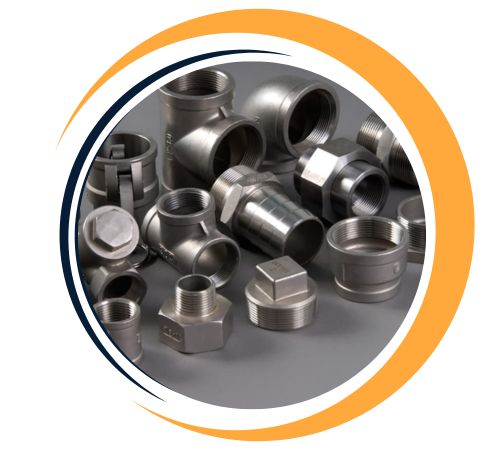

Type : Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings
Steel UNS S32750 Forged Fittings, they feature a carefully balanced chemical makeup, rich in chromium, molybdenum, and nitrogen, with a moderate amount of nickel. This unique blend provides outstanding resistance to corrosion, especially against pitting and crevice corrosion. These fittings also showcase impressive mechanical properties, including high tensile strength, excellent yield strength, and remarkable impact toughness. They maintain stability even in extreme temperatures and high-pressure situations, adhering to standards like ASTM A182 and ASME SA182. Their dual-phase microstructure enhances performance in tough and demanding environments.
| UNS | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
| S32750 | 2507 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
Kanak Fittings is a leading supplier of Super Duplex Steel UNS S32750 Fittings in Dubai, UAE. We offer an extensive range of Super Duplex Steel UNS S32750 Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S2750 | S32750 | 1.4410 |
Choose Super Duplex Steel UNS S32750 Forged Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel UNS S32750 forged fittings offer several advantages, including exceptional resistance to pitting, crevice, and stress corrosion cracking, making them ideal for harsh environments like offshore and chemical processing industries. The high chromium, molybdenum, and nitrogen content enhances corrosion resistance, while the dual-phase microstructure provides superior strength and toughness. These fittings also exhibit excellent fatigue resistance and high tensile strength, ensuring durability and reliability in critical applications. Their ability to perform under extreme temperatures and pressure conditions adds to their versatility in demanding industries like oil and gas, marine, and petrochemical.
Yes, custom sizes for Super Duplex Steel UNS S32750 Forged Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32750 Forged Fittings find their place in critical sectors like offshore oil drilling, marine engineering, chemical processing, and desalination plants. Their exceptional strength and corrosion resistance make them perfect for dealing with aggressive chemicals, saline water, and high-pressure fluids. Commonly used in pipelines, heat exchangers, and pressure vessels, these fittings ensure efficient flow and maintain system integrity. Their outstanding performance in challenging conditions makes them the go-to choice for industries that require reliability and durability
