Hastelloy C276 Buttweld Fittings Manufacturer and Supplier in Dubai, UAE

Kanak Fittings stands out as a top-notch manufacturer and supplier of high-quality Hastelloy C276 Buttweld Fittings right here in Dubai, UAE. Renowned for their precision engineering and commitment to global standards, Kanak Fittings delivers durable and dependable piping solutions for various industries, including chemical processing, pharmaceuticals, power generation, and marine applications. With cutting-edge facilities and a dedication to excellence, the company guarantees that its products can handle the tough demands of harsh environments. Over the years, Kanak Fittings has built a reputation as a reliable partner, providing customized, high-performance fittings to clients across a wide range of sectors.

Table of Contents

C-276 Hastelloy Welded Pipe Fittings Suppliers UAE, C276 Hastelloy® ANSI B16.9 Short & Long Radius Elbow Sharjah, C276 Hastelloy 45°/90°/180° Butt weld Elbow Dubai, Distributors of Hastelloy® Alloy C276 ASME SB366 Buttweld Reducer in Abu Dhabi, ASME B16.28 C-276 Hastelloy® Alloy Butt weld Reducing Tee Jebel Ali, C276 Hastelloy Unequal Cross Exporters Al Ain, C276 Hastelloy Welded Fittings In Ajman.

Hastelloy C276 Buttweld Fittings Specification

SpecificationsASTM B366 / ASME SB366
Dimension StandardASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25Buttwelding Ends.
ASME B16.28standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size1/2″ – 10″
Welded Butt Weld Fittings Size1/2″ – 48″
ThicknessSch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending RadiusR=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
TypeSeamless / Welded / Fabricated

Hastelloy C276 Buttweld Fittings Chemical Composition

Grade Ni C Mo Mn Si Fe P S Co Cr
Hastelloy C276 Balance 0.01 max 15 – 17 1.0 max 0.08 max 4 – 7 0.04 max 0.03 max 2.5 max 14.5 – 16.5

Hastelloy C276 Buttweld Fittings Equivalent Grade

STANDARDUNSWERKSTOFF NR.AFNORENJISORGOST
Hastelloy C276N102762.4819NiMo16Cr15WNW 0276ЭП760ХН65МВУ

Hastelloy C276 Buttweld Fittings are made from a unique nickel-molybdenum-chromium alloy, enhanced with iron and tungsten, which gives them outstanding corrosion resistance. This special composition allows them to thrive in both oxidizing and reducing environments, making them perfect for aggressive chemical settings. These fittings boast impressive tensile strength, toughness, and resistance to pitting and crevice corrosion. Their mechanical properties include a high melting point, excellent ductility, and the ability to maintain strength even in extreme conditions, all while meeting standards like ASTM B366 and ASME SB366, ensuring they perform reliably in critical applications.

Hastelloy C276 Buttweld Elbow Dimensions Standard

NOMINAL PIPE SIZE ALL FITTINGS ALL FITTINGS ELBOWS AND TEES 180 DEG RETURN BENDS 180 DEG RETURN BENDS 180 DEG RETURN BENDS REDUCERS CAPS
NPS O.D. at Bevel (1), (2) I.D. at End (1), (3), (4) Centre -to- End Dimension A, B, C, M Centre-to- Centre O Back-to- Face K Alignment of Ends U Overall Length H Overall Length E
½ to 2½ 0.06 -0.03 0.03 0.06 0.25 0.25 0.03 0.06 0.12
3 to 3 ½ 0.06 0.06 0.06 0.25 0.25 0.03 0.06 0.12
4 0.06 0.06 0.06 0.25 0.25 0.03 0.06 0.12
5 to 8 0.09 -0.06 0.06 0.06 0.25 0.25 0.03 0.06 0.25
10 to 18 0.16 -0.12 0.12 0.09 0.38 0.25 0.06 0.09 0.25
20 to 24 0.25 -0.19 0.19 0.09 0.38 0.25 0.06 0.09 0.25
26 to 30 0.25 -0.19 0.19 0.12 0.19 0.38
32 to 48 0.25 -0.19 0.19 0.19 0.19 0.38

Nickel Alloy C-276 Buttweld Fittings UAE, Nickelvac® HC-276 Butt weld Pipe Fittings Sharjah, Hastelloy C-276 Equal Tee Wholesaler Dubai, ASTM B366 Hastelloy C276 Pipe Elbow Abu Dhabi, C276 Hastelloy® Buttweld Tee Dealer In Jebel Ali, Hastelloy C-276 Pipe Fittings Al Ain, Hastelloy® C276 Pipe Fittings Ajman.

Largest Hastelloy C276 Buttweld Fittings Supplier in Dubai, UAE

Kanak Fittings is a leading supplier of Hastelloy C276 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Hastelloy C276 Buttweld Fittings Dimensions Standard

All Fittings 90°and 45° Ells and Tees Reducers and Lap Joint Stub Caps 180° Returns Angularity Tol
Nominal Pipe Plane Size (NPS) Outside(1) Diameter at Bevel Inside(1) Diameter at End Wall(2) Thickness Centre-to- End Dimension A,B,C,M Overall Length L Overall Length E Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% of Normal Thickness ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16
-1/32 5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/16 ±1/4 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8
-1/16
10 TO 18 +1/16 ±1/8 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16  All dimensions are in inches
-1/8
20 TO 24 +1/4 ±3/32 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16
-3/32

Why Choose Hastelloy C276 Buttweld Fittings from Kanak Fittings?

Hastelloy C276 Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Hastelloy Grade C-276 Butt weld Pipe Fittings Stockists In UAE, Alloy C276 Pipe Fittings Suppliers Sharjah, UNS N10276 Nickel Alloy Butt weld Seamless Pipe Fitting Dubai, Werkstoff No 2.4819 Hastelloy® Butt weld Eccentric Reducer Traders Abu Dhabi, Alloy C-276 MSS-SP-43 Buttweld Swage Nipple Jebel Ali, C276 Nickel Alloy Concentric Reducer Al Ain, MSS SP-79 Hastelloy C-276 End Pipe Cap Suppliers Ajman, Hastelloy® Alloy JIS NW 0276 C276 Stub Ends Exporters UAE, Nicrofer® 5716 Pipe Fittings Dubai, UAE.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C276 Buttweld Fittings offer numerous advantages, making them ideal for challenging environments. Their superior resistance to corrosion, including pitting, stress-corrosion cracking, and oxidation, ensures long-lasting performance in aggressive chemical processes. These fittings maintain strength and integrity even in high-temperature and highly acidic or alkaline conditions. With exceptional weldability and formability, Hastelloy C276 allows for easy fabrication into various shapes. Its excellent durability and low maintenance needs make it cost-effective over time. These properties make it a preferred choice for industries like chemical processing, power generation, and marine applications.

Types of Hastelloy C276 Buttweld Fittings

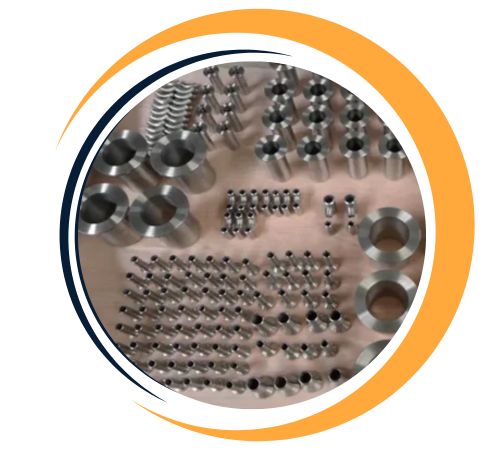

ASTM B366 Hastelloy C276 Concentric Reducer
Werkstoff Nr. 2.4819 SCH20 Equal Tee

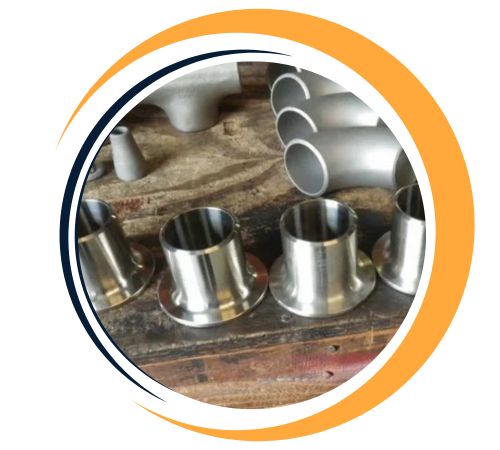

UNS N10276 SCH10 Eccentric Reducer
Werkstoff Nr. 2.4819 SCH20 Elbow 45 Deg

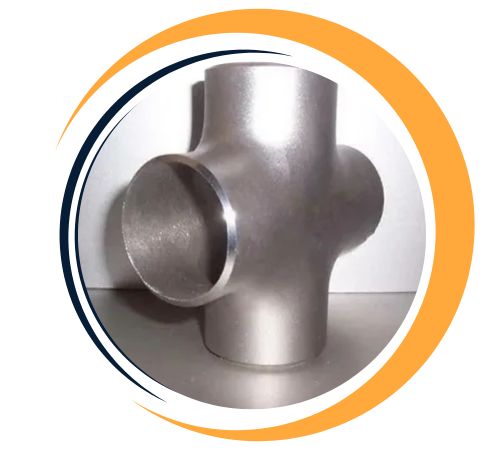

ASTM B366 Hastelloy C276 End Cap

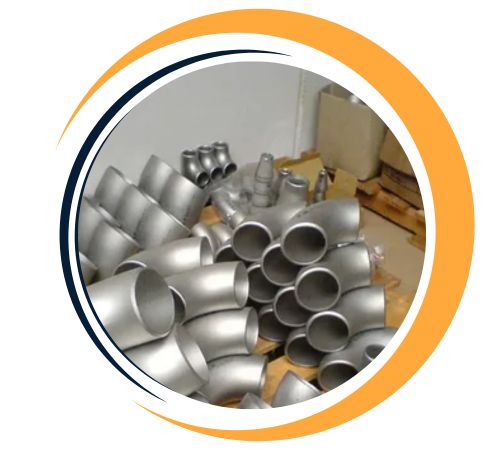

ASTM B366 Hastelloy C276 Stub End Fitting

Are Custom Sizes Available for Hastelloy C276 Buttweld Fittings?

Yes, custom sizes for Hastelloy C276 Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.

Werkstoff No 2.4819 Hastelloy® Butt weld Eccentric Reducer Traders UAE, Alloy C-276 MSS-SP-43 Buttweld Swage Nipple Sharjah, C276 Nickel Alloy Concentric Reducer Dubai, MSS SP-79 Hastelloy C-276 End Pipe Cap Suppliers Abu Dhabi, Hastelloy® Alloy JIS NW 0276 C276 Stub Ends Exporters Jebel Ali, Nicrofer® 5716 Pipe Fittings Al Ain, Hastelloy C276 Buttweld Fittings Ajman.

Application Industry of Hastelloy C276 Buttweld Fittings

Hastelloy C276 Buttweld Fittings are widely utilized in industries that demand superior corrosion resistance, such as chemical processing, pulp and paper, marine, and waste treatment plants. These fittings are perfect for connecting, redirecting, and controlling the flow of highly corrosive fluids and gases. Their remarkable resistance to high temperatures and harsh chemicals, including sulfuric acid, hydrochloric acid, and chlorine gas, makes them essential for demanding applications. Common uses include pipelines in chemical reactors, heat exchangers, and desalination plants, ensuring efficiency and safety in various processes.
