Kanak Fittings has established itself as a reliable name in the manufacturing and supply of top-notch Alloy Steel WP91 Buttweld Fittings in Dubai, UAE. Known for their outstanding quality and strict adherence to international standards, the company provides a diverse selection of fittings tailored to the needs of various industries, including oil and gas, power generation, and petrochemicals. Thanks to their advanced manufacturing techniques and thorough quality inspections, Kanak Fittings guarantees products that are both dependable and long-lasting. Their dedication to customer satisfaction and technical know-how positions them as a preferred choice for Alloy Steel WP91 Buttweld Fittings in the region.
| Specifications Standard | Astm A234/ ASME SA 234 |
|---|---|
| Alloy Steel Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Alloy Steel Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

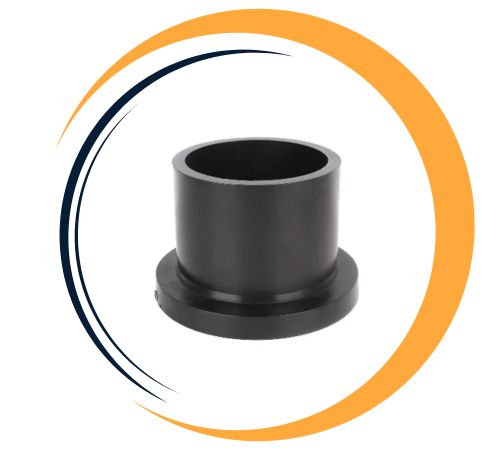

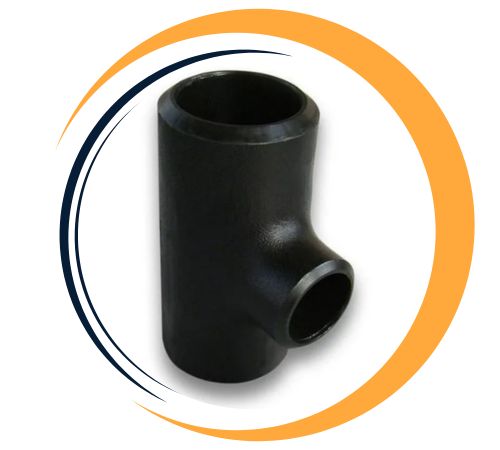

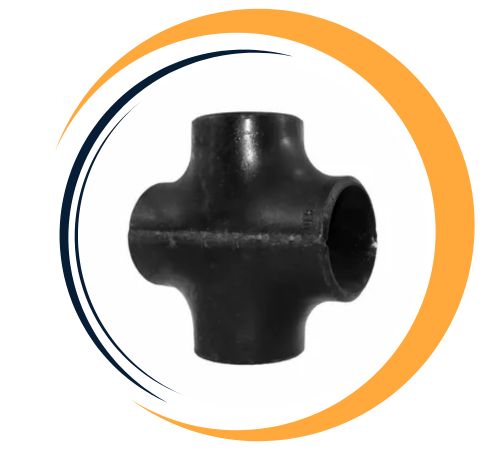

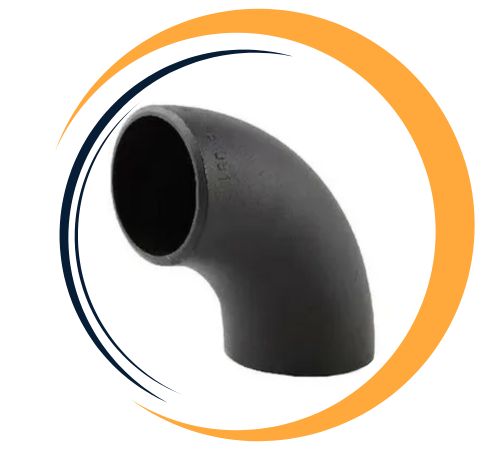

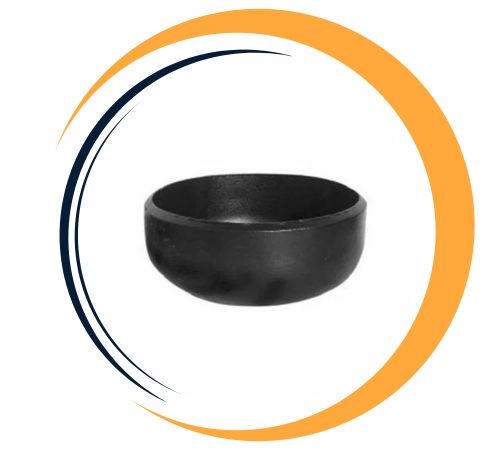

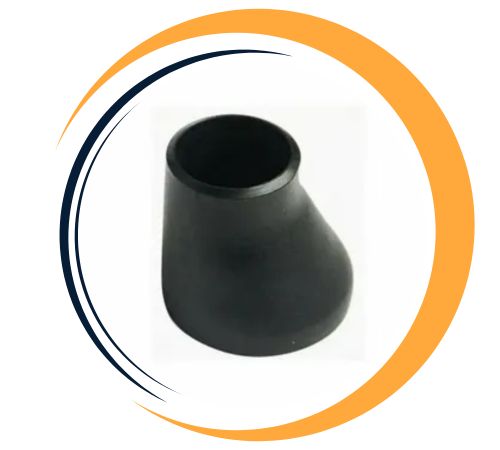

| Alloy Steel Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Composition and Mechanical Properties of Alloy Steel WP91 Buttweld Fittings
Alloy Steel WP91 Buttweld Fittings are made from a blend of chromium, molybdenum, and other alloying elements, which give them remarkable strength and resistance to corrosion. The high chromium content boosts oxidation resistance, while molybdenum enhances tensile strength and durability, especially in high-temperature settings. These fittings showcase impressive mechanical properties, such as high yield strength, impact resistance, and thermal stability. Meeting ASTM A335 and ASME SA234 standards, WP91 Buttweld Fittings are designed for long-lasting reliability and exceptional performance in demanding industrial conditions.
|
Grade |
Mn |
C |
P |
Si |
Cr |
S |
Mo |
|---|---|---|---|---|---|---|---|
|
F5 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F1 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F11 |
0.03 to 0.06 |
0.05 to 0.015 |
0.003 |
0.05 to 1.00 |
1.00 to 1.05 |
0.003 |
0.044 to 0.065 |
|
F9 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
F22 |
0.03 to 0.06 |
0.050.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F12 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F91 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
Grade |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|---|---|---|---|
|
F5 |
485 |
275 |
20 % |
|
F1 |
485 |
275 |
20 % |
|
F11 |
415 |
205 |
20 % |
|
F9 |
585 |
380 |
20 % |
|
F22 |
415 |
205 |
20 % |
|
F12 |
485 |
275 |
20 % |
|
F91 |
585 |
380 |
20 % |
Kanak Fittings is a leading supplier of Alloy Steel Pipe Fittings in Dubai, UAE. We offer an extensive range of Alloy Steel Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel Pipe Fittings offer excellent strength, durability, and resistance to corrosion, making them ideal for high-stress applications. Their ability to withstand extreme temperatures and pressure enhances their reliability in oil and gas, chemical processing, and power generation industries. These fittings provide superior wear resistance, ensuring long-term performance even in abrasive environments. Additionally, alloy steel pipe fittings are highly versatile, offering good weldability and machinability, which ensures ease of installation and maintenance. Their cost-effectiveness and long-lasting nature make them a preferred choice for demanding industrial applications.
Yes, custom sizes for Alloy Steel Pipe Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Alloy Steel WP91 Buttweld Fittings find extensive use in sectors like power generation, oil and gas, chemical processing, and refinery operations. They are perfect for high-pressure and high-temperature applications, providing excellent resistance to thermal fatigue and creep. These fittings are essential in pipelines, allowing for smooth transitions, directional changes, and secure connections while preserving structural integrity. Their corrosion resistance makes them ideal for transporting corrosive materials, including acids, gases, and high-temperature fluids, ensuring safe and efficient operations in critical environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
