Kanak Fittings stands out as a top-notch manufacturer and supplier of Titanium Grade 5 Pipe Fittings, proudly based in Dubai, UAE. Known for their commitment to quality, Kanak Fittings caters to a variety of industries, including aerospace, marine, chemical processing, and oil & gas. With a strong focus on meeting international standards and ensuring customer satisfaction, they offer an extensive selection of Titanium Grade 5 fittings, such as elbows, tees, reducers, and stub ends. Each product is meticulously crafted with precision engineering, guaranteeing high durability, corrosion resistance, and outstanding performance even in the toughest environments. This dedication has made Kanak Fittings a trusted name in markets around the globe.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

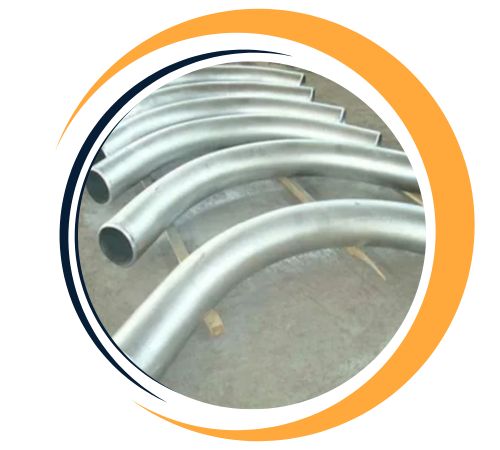

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr 5 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
Titanium Grade 5, also known as Ti-6Al-4V, is composed of approximately 90% titanium, 6% aluminum, and 4% vanadium. This alloy is known for its high strength-to-weight ratio and excellent corrosion resistance. It has a tensile strength of around 950 MPa, yield strength of 880 MPa, and good fatigue and creep resistance at high temperatures. The alloy maintains structural integrity up to 400°C and exhibits a hardness of about 36 HRC. These mechanical properties make Titanium Gr 5 ideal for critical applications in aerospace, marine, and industrial sectors.
Kanak Fittings is a leading supplier of Titanium Gr 5 Pipe Fittings in Dubai, UAE. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 5 Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 5 (Ti-6Al-4V) pipe fittings offer numerous advantages, including exceptional strength-to-weight ratio, which makes them ideal for demanding applications where lightweight yet durable materials are required. They exhibit outstanding corrosion resistance, especially in aggressive environments such as seawater, acids, and high-temperature conditions. Titanium Grade 5 fittings also offer high fatigue strength, excellent weldability, and resistance to wear and creep. These properties make them perfect for aerospace, marine, and chemical industries. Additionally, their long lifespan and low maintenance requirements contribute to cost savings over time.

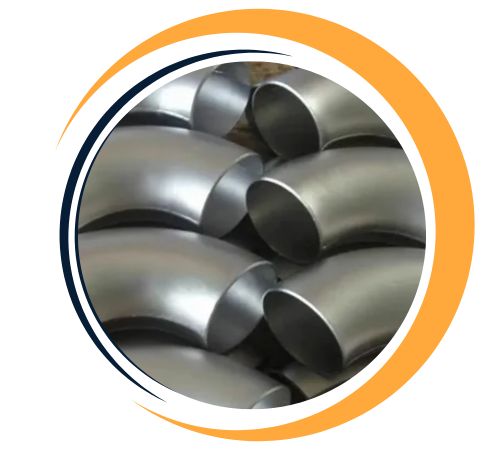

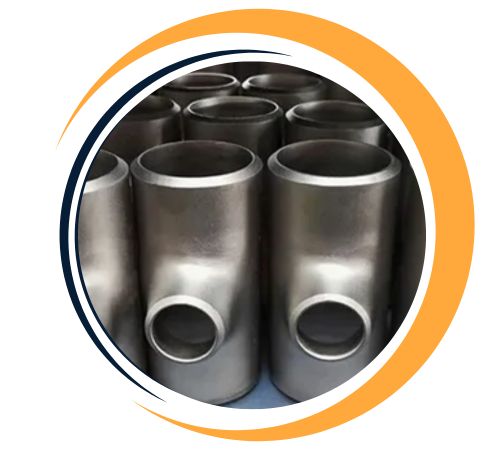

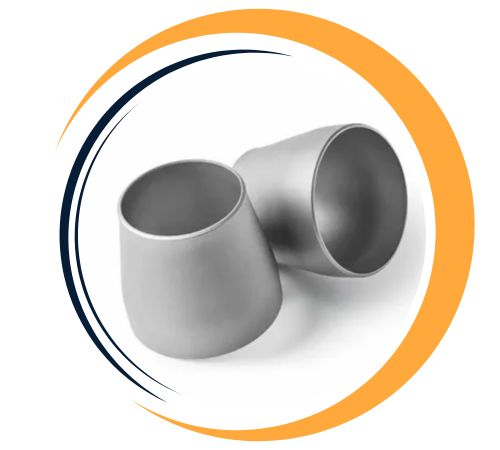

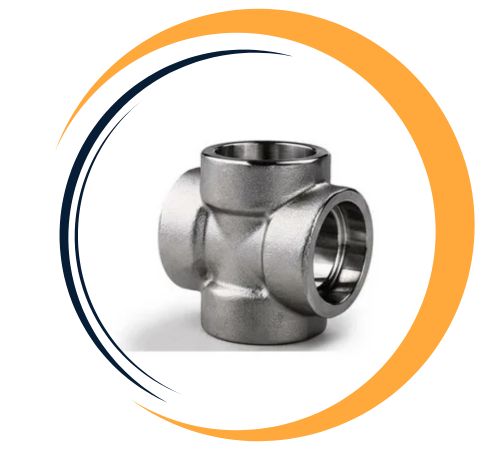

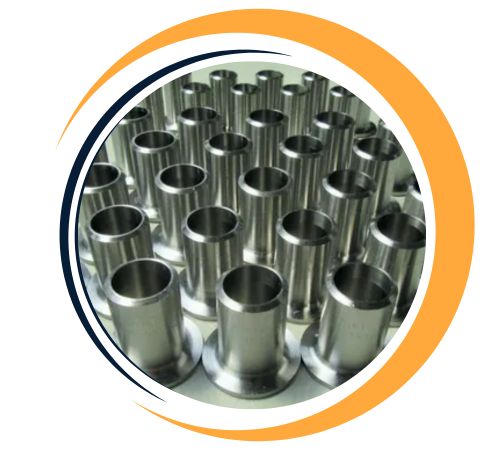

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | GR5 Titanium Alloy Long Radius Elbows, Long Radius Reducing Elbows, Titanium Gr5 Long Radius Returns, Titanium Alloy Gr5 Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Rerurns, Titanium Gr 5 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Gr 5 Lap Joint Stub Ends, Titanium Gr 5 Caps, Reducers |
| ASME B16.28 | Gr5 Titanium Alloy Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Gr 5 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Gr5 Titanium Gr 5 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Gr 5 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Gr5 Titanium Alloy reducers |
Yes, custom sizes for Titanium Gr 5 Pipe Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Titanium Grade 5 Pipe Fittings are widely used across industries due to their exceptional strength, corrosion resistance, and lightweight properties. In aerospace, they are used in hydraulic systems, fuel lines, and structural components. In the marine industry, they withstand harsh saltwater environments in shipbuilding and offshore applications. Chemical processing plants utilize these fittings for their resistance to acids and chlorides. They are also vital in power generation, medical implants, and desalination systems. Titanium Gr 5’s high-temperature performance and biocompatibility make it suitable for both industrial and biomedical applications, ensuring long-term durability and reliability under extreme conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
