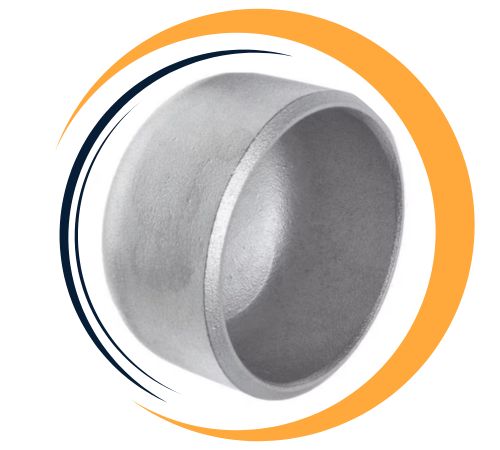

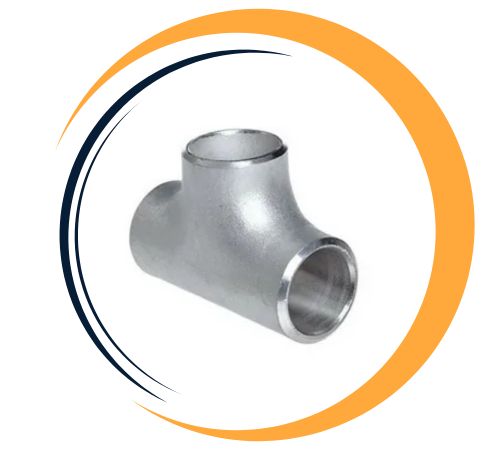

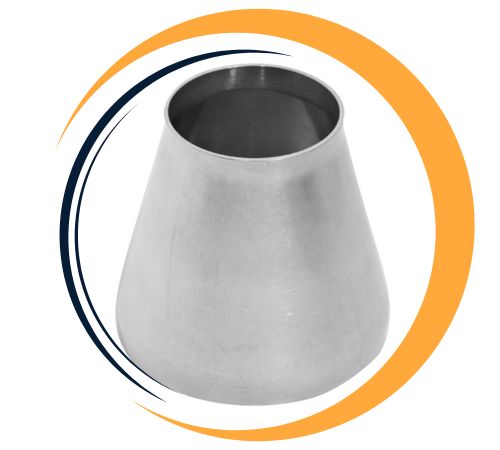

Kanak Fittings stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 410 Buttweld Fittings right here in Dubai, UAE. We pride ourselves on our unwavering commitment to excellence and precision engineering, delivering fittings that are not only durable but also reliable, all while adhering to international standards. Our vast inventory features a variety of products, including elbows, tees, reducers, and caps, designed to meet the needs of various industrial applications. With a skilled team of professionals and cutting-edge technology at our disposal, Kanak Fittings guarantees timely delivery and exceptional product quality. We proudly serve a range of industries, from oil & gas to petrochemicals and power generation, making us your go-to partner for premium-grade SS 410 Buttweld Fittings in the UAE and beyond.
| Specifications | ASME SA403 / ASTM A403 |
|---|---|
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Standard Size Range | 1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Butt Weld |
| Melting Point | 1400-1450°C for (WP410) |
| Outside Diameter (OD) | Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Materials | AISI 410 |
| Two Halve / Two Joint Buttweld Fittings Size | 6″ to 48″ |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
| A403 SS Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A403 SS Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
When it comes to Stainless Steel 410 Buttweld Fittings, they are primarily made up of 11.5–13.5% chromium, along with trace amounts of carbon (up to 0.15%), manganese, silicon, phosphorus, and sulfur. This type of martensitic stainless steel is known for its impressive hardness, corrosion resistance, and wear resistance. In terms of mechanical properties, it boasts a minimum tensile strength of 480 MPa, a yield strength of at least 270 MPa, and good ductility with an elongation of around 20%. SS 410 fittings also have a Brinell hardness of about 217 HB. These features make them perfect for environments with moderate corrosion and applications that demand high mechanical strength.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
Kanak Fittings is a leading supplier of Stainless Steel 410 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 410 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 410 | S41000 | 410S21 | 56A | 1.4006 | X12Cr13 | 2302 | SUS 410 |
Stainless Steel 410 Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 410 buttweld fittings provide excellent corrosion resistance, especially in soft to low level environments, making them ideal for use in industries such as petrochemical and food processing They provide excellent mechanical properties such as strength and density, especially in density. These materials are durable, corrosion resistant, and easy to scratch, providing a strong waterproof bond. Stainless steel 410 also provides excellent heat resistance and can withstand high temperatures. These features make them a reliable choice for applications requiring high strength and corrosion resistance.

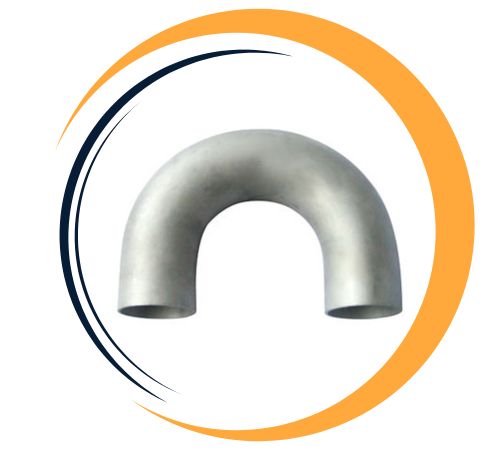

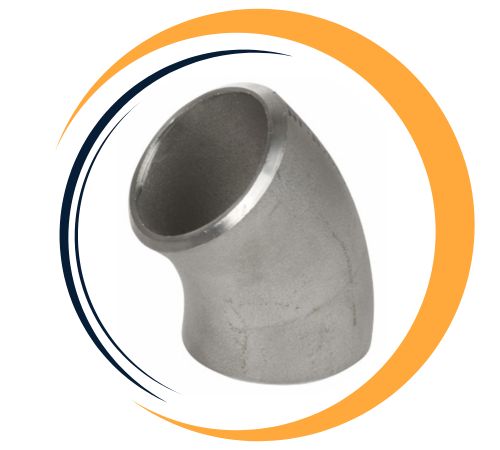

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 410 Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Thanks to their high strength, corrosion resistance, and cost-effectiveness, Stainless Steel 410 Buttweld Fittings are widely utilized across various industries. You’ll often find them in piping systems at oil & gas refineries, power plants, chemical processing units, and even in marine settings. Their ability to handle high pressure and temperature makes them ideal for heat exchangers, boilers, and steam lines. Plus, SS 410 fittings are commonly used in construction and structural frameworks where durability and reliability are key. Their excellent machinability and weldability also make them a great choice for custom fabrication projects, ensuring a long service life in both industrial and commercial settings
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
