Kanak Fittings stands out as a trusted manufacturer and supplier of top-notch Lap Joint Stub Ends right here in Dubai, UAE. We pride ourselves on delivering efficient and durable piping solutions tailored for a variety of industrial needs. Our fittings are specifically crafted to work seamlessly with lap joint flanges, making it a breeze to disassemble and inspect piping systems when necessary. Adhering to international standards like ASME B16.9, our Lap Joint Stub Ends come in a range of materials, including stainless steel, carbon steel, and alloy steel. Renowned for their precision, strength, and resistance to corrosion, Kanak Fittings is dedicated to serving industries throughout the UAE and the Middle East with high-quality products and timely deliveries.

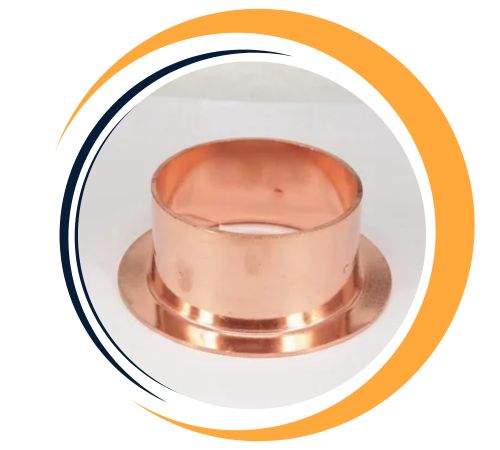

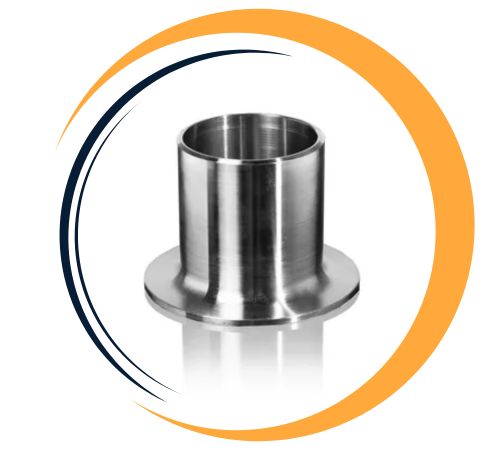

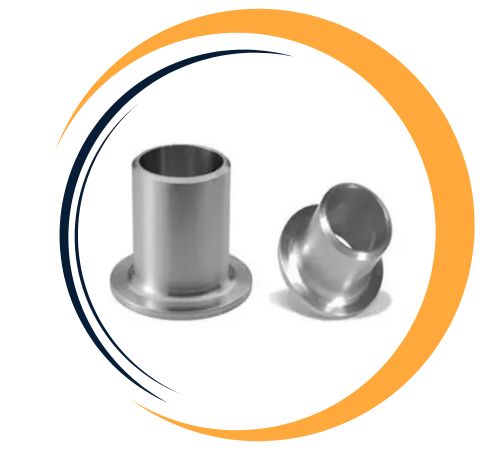

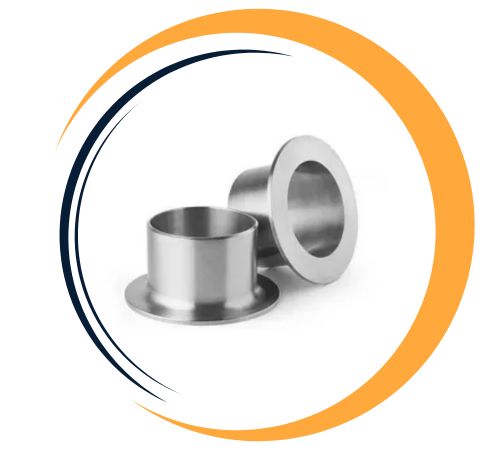

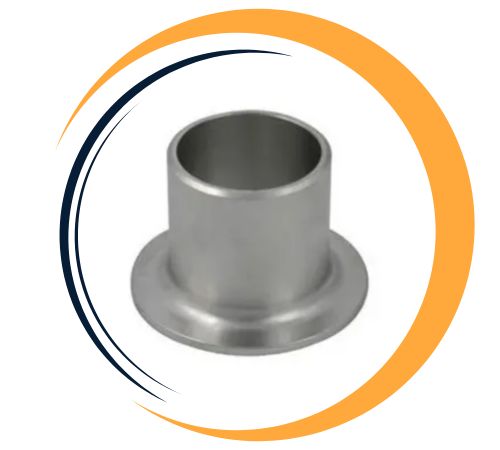

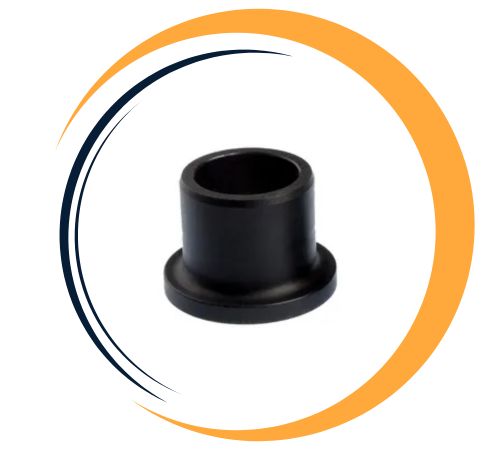

Lap Joint Stub Ends are compact pipe fittings featuring a welded end and a flared end, which allows them to rotate against a backing flange. Typically crafted from corrosion-resistant materials such as stainless steel (304, 316), nickel alloys, and carbon steel, these fittings boast impressive mechanical properties, including tensile strength that ranges from 400 to 600 MPa, along with excellent flexibility. Their design not only permits the use of more affordable flanges but also simplifies bolt alignment, making them a smart and economical choice for systems that need to be frequently taken apart or inspected.
| Buttweld Lap Joint Stub Ends size | Welded Stub Ends : 1/2″ – 48″ |
|---|---|
| Buttweld Lap Joint Stub Ends Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Lap Joint Stub Ends Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Lap Joint Stub Ends Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Stub Ends |
| ASME B16.9 Buttweld Lap Joint Stub Ends Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Lap Joint Stub Ends Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Lap Joint Stub Ends Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Kanak Fittings is a leading supplier of Lap Joint Stub Ends in Dubai, UAE. We offer an extensive range of Lap Joint Stub Ends, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Lap Joint Stub Ends from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Lap Joint Stub Ends offer several advantages in piping systems. They provide a versatile, cost-effective solution for connections, especially in systems requiring frequent disassembly for maintenance. The design allows easy alignment and welding, ensuring a secure and leak-free joint. These stub ends are ideal for use with lap joint flanges, providing flexibility in installation and reducing the risk of flange misalignment. Additionally, their corrosion resistance and ability to withstand high-pressure applications make them a reliable choice for oil and gas, chemical, and power generation industries.
| Nominal Pipe Size
(NPS) |
Outside Diameter at Bevel | Long Pattern | Short Pattern | Radius of Fillet | Diameter of Lap | |
| Max | Min | F | F | R | G | |
| 1/2 | 22.8 | 20.5 | 76 | 51 | 3 | 35 |
| 3/4 | 28.1 | 25.9 | 76 | 51 | 3 | 43 |
| 1 | 35.0 | 32.6 | 102 | 51 | 3 | 51 |
| 1-1/4 | 43.6 | 41.4 | 102 | 51 | 5 | 64 |
| 1-1/2 | 49.9 | 47.5 | 102 | 51 | 6 | 73 |
| 2 | 62.4 | 59.5 | 152 | 64 | 8 | 92 |
| 2-1/2 | 75.3 | 72.2 | 152 | 64 | 8 | 105 |
| 3 | 91.3 | 88.1 | 152 | 64 | 10 | 127 |
| 3-1/2 | 104.0 | 100.8 | 152 | 76 | 10 | 140 |
| 4 | 116.7 | 113.5 | 152 | 76 | 11 | 157 |
| 5 | 144.3 | 140.5 | 203 | 76 | 11 | 186 |
| 6 | 171.3 | 167.5 | 203 | 89 | 13 | 216 |
| 8 | 222.1 | 218.3 | 203 | 102 | 13 | 270 |
| 10 | 277.2 | 272.3 | 254 | 127 | 13 | 324 |
| 12 | 328.0 | 323.1 | 254 | 152 | 13 | 381 |
| 14 | 359.5 | 354.8 | 305 | 152 | 13 | 413 |
| 16 | 411.0 | 405.6 | 305 | 152 | 13 | 470 |
| 18 | 462 | 456 | 305 | 152 | 13 | 533 |
| 20 | 514 | 507 | 305 | 152 | 13 | 584 |
| 22 | 565 | 558 | 305 | 152 | 13 | 641 |
| 24 | 616 | 609 | 305 | 152 | 13 | 692 |
Yes, custom sizes for Lap Joint Stub Ends are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
These Lap Joint Stub Ends find their place in industries that require regular disassembly and maintenance of pipelines, such as chemical processing, food and beverage, pharmaceuticals, water treatment, and marine sectors. They shine in systems where alignment is crucial or where space limitations necessitate rotating flange connections. While commonly used in low-pressure and non-critical applications, they also perform well in corrosive environments when matched with compatible materials. Their design allows for easy inspection, cleaning, and replacement without disrupting the entire pipeline, making them a go-to option for efficient and maintenance-friendly piping systems.
