Incoloy 825 Pipe Fittings Manufacturer and Supplier in Dubai, UAE

Kanak Fittings is a reliable manufacturer and supplier of Incoloy 825 Pipe Fittings based in Dubai, UAE. We pride ourselves on delivering top-notch, corrosion-resistant solutions tailored for demanding industrial applications. Incoloy 825 is a unique alloy made from nickel, iron, and chromium, enhanced with molybdenum, copper, and titanium, which gives it remarkable resistance to a variety of corrosive environments, including sulfuric and phosphoric acids. Our extensive range of pipe fittings includes elbows, tees, reducers, and caps, all crafted to meet global standards for quality, strength, and performance. At Kanak Fittings, we emphasize precision, reliability, and timely delivery, serving clients across the chemical processing, marine, oil & gas, and power generation sectors.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings UAE, Incoloy 825 Pipe Fitting Sharjah, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Dubai, Incoloy 825 Buttweld Fittings Abu Dhabi, ASTM B366 WPNICMC Fittings Jebel Ali, Incoloy 825 Elbow Fittings Al Ain, UNS N08825 Tee Fittings Dealer Ajman, Alloy 825 Fittings Stockists Dubai, UAE.

Incoloy 825 Pipe Fittings Specification

Spec Chart Of:	Incoloy 825 Pipe Fittings
Dimension Table Of:	ANSI B16.9, JIS B2312, MSS-SP-43 Type B, ASME B16.28, JIS B2313, MSS-SP-43 Type A
Fittings Materials Directory:	Iron (Ductile/Cast), Carbon Steel, Titanium, Nickel Alloys, Nickel, Cupro-Nickel 90/10 & 70/30, Brass, Bronze, Copper, Chrome-molybdenum, Inconel, Monel, Tantalum, Stainless Steel, Hastalloy, Alloy Steel
Size Calculation:	Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”)
Standard Fittings Chart	JIS, NPT, ISO, DIN, EN
Manimum Pressure	Class 150# To Class 2500#.
Schedule Chart:	Schedule 5s/ Schedule 10s/ Schedule 40/ Schedule 80/ Schedule 120/ Schedule 160.
Most Demanded Fittings Types	Adapter, 4 Wye, End Cap, Stub End, Reducer, Cross, Bend, Elbow, Tee
Buttweld Fittings Connection Type	Threaded/ Weld/ Flange/ Clamp End / End Bell

Incoloy 825 Pipe Fittings Chemical Composition

The Chemical Composition of Incoloy 825 Pipe Fittings, %
Nickel	38.0-46.0
Iron	≥22.0
Chromium	19.5-23.5
Molybdenum	2.5-3.5
Copper	1.5-3.0
Titanium	0.6-1.2
Carbon	≤0.05
Manganese	≤1.00
Sulfur	≤0.030
Silicon	≤0.50
Aluminum	≤0.20

Incoloy 825 Pipe Fittings Mechanical Properties

Tensile Strength, min.		Yield Strength, min.		Elongation, min.	Elastic Modulus
Mpa	%	Gpa	10⁶psi	ksi	Mpa	ksi
690	45	206	29.8	100	310	45

Incoloy 825 Pipe Fittings Equivalent Indian Standard

STANDARD	AFNOR	EN	OR	WERKSTOFF NR.	UNS	JIS	BS	GOST
Incoloy 825 Pipe Fittings	NFE30C20DUM	NiCr21Mo	XH38BT	2.4858	N08825	NCF 825	NA 16	ЭП703

Incoloy 825 Pipe Fittings consist of about 38–46% nickel, 19.5–23.5% iron, 19.5–23.5% chromium, 2.5–3.5% molybdenum, 1.5–3% copper, and 0.6–1.2% titanium. This blend provides outstanding resistance to both oxidizing and reducing acids, as well as stress corrosion cracking and pitting in environments with chlorides. These fittings boast a minimum tensile strength of 690 MPa, a yield strength of 310 MPa, and an elongation of 30%. Incoloy 825 retains excellent mechanical properties and corrosion resistance over a wide temperature range, making it perfect for high-pressure applications and chemically aggressive media.

Distributors of Incoloy 825 Buttweld Pipe Fittings in UAE, ASTM B366 N08825 Equal Tee Sharjah, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Dubai, Werkstoff Nr. 2.4858 Concentric Reducer Abu Dhabi, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Jebel Ali, Nickelvac® 825 Pipe Fittings Al Ain, Alloy 825 Buttweld Pipe Nipple Ajman, High-Quality ASME B366 Incoloy N08825 Stub End Dubai, UAE.

Largest Incoloy 825 Pipe Fittings Supplier in Dubai, UAE

Kanak Fittings is a leading supplier of Incoloy 800/ 800H/ 800HT Pipe Fittings in Dubai, UAE. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Pipe Fittings from Kanak Fittings?

Incoloy 825 Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings UAE, Incoloy 825 Pipe Fitting Sharjah, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Dubai, Incoloy 825 Buttweld Fittings Abu Dhabi, ASTM B366 WPNICMC Fittings Jebel Ali, Incoloy 825 Elbow Fittings Al Ain, UNS N08825 Tee Fittings Dealer Ajman, Alloy 825 Fittings Stockists Dubai, UAE.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 pipe fittings offer several advantages, making them ideal for demanding applications. They provide exceptional resistance to corrosion, including pitting, crevice corrosion, and intergranular attack, even in harsh acidic and oxidizing environments. Their high nickel content ensures resistance to stress corrosion cracking, while molybdenum enhances protection against chloride-induced corrosion. These fittings maintain excellent mechanical strength and stability across a wide temperature range. Additionally, they are durable, easy to fabricate, and cost-effective, ensuring long-term reliability in industries like chemical processing, marine engineering, and oil and gas exploration.

Standard Dimensions Of Alloy 825 Pipe Fittings

NPS (Normal Pipe Size)	O.D. (Outside Daimeter)		Elbow 90 Deg		Elbow 45 Deg		Return Elbow 180 Deg
*(inch)*			Long Radius Elbow	Short Radius	Long Radius Elbow		Long Radius Elbow
	*(millimeter/ MM)*	*(inch./ Inches)*	Center to Face (Inches)	Center to Face (Inches)	Center to Face (Inches)	Radius (Inches)	Center to Center (Inches)	Back to face (Inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Alloy 825 Pipe Fittings Weight Chart Table

DN (Normal Pipe Size) For ASME B16.9	Schedule 10S			Schedule 40S			Schedule 80S
DN (Normal Pipe Size) For ASME B16.9	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

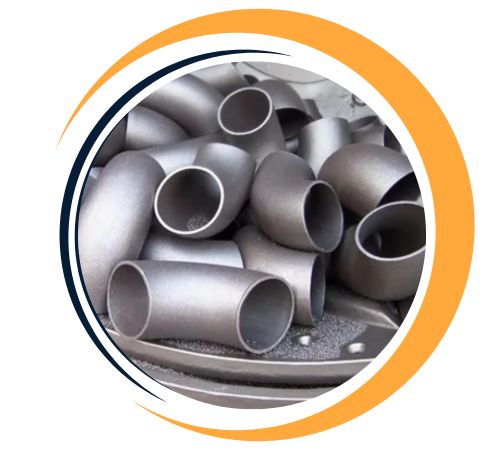

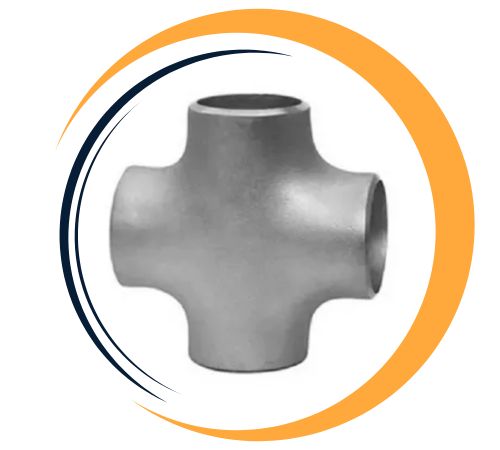

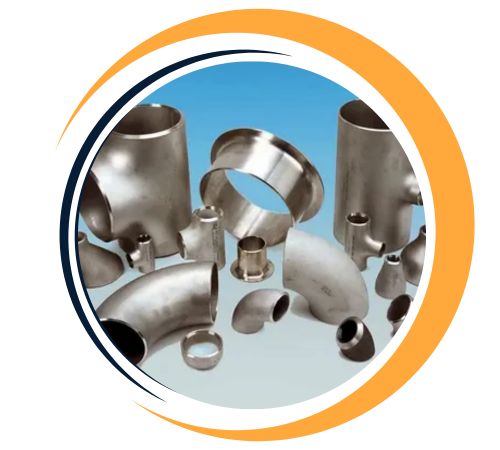

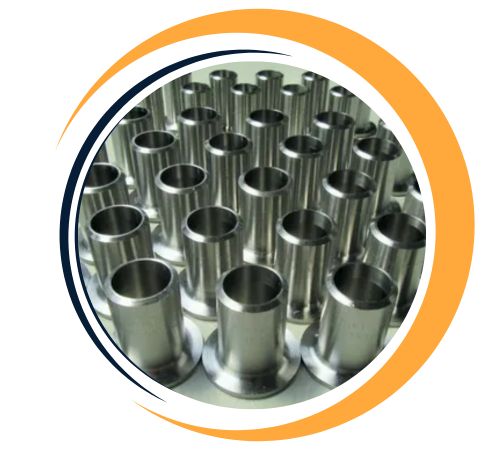

Types of Incoloy 825 Pipe Fittings

Are Custom Sizes Available for Incoloy 825 Pipe Fittings?

Yes, custom sizes for Incoloy 825 Pipe Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.

Distributors of Incoloy 825 Buttweld Pipe Fittings in UAE, ASTM B366 N08825 Equal Tee Sharjah, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Dubai, Werkstoff Nr. 2.4858 Concentric Reducer Abu Dhabi, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Jebel Ali, Nickelvac® 825 Pipe Fittings Al Ain, Alloy 825 Buttweld Pipe Nipple Ajman, High-Quality ASME B366 Incoloy N08825 Stub End Dubai, UAE.

Application Industry of Incoloy 825 Pipe Fittings

Incoloy 825 Pipe Fittings are widely utilized in industrial systems that demand high corrosion resistance, especially in chemical processing and acid-handling equipment. They are particularly suited for piping systems in sulfuric acid plants, offshore and marine settings, oil and gas facilities, pollution control systems, and nuclear fuel reprocessing. Their ability to endure both oxidizing and reducing conditions makes them adaptable for a variety of corrosive processes. With their durability, exceptional weldability, and long-lasting performance under extreme chemical exposure, Incoloy 825 is the go-to choice for high-integrity piping installations.
