Kanak Fittings stands out as a top-notch manufacturer and supplier of Alloy Steel WP1 Pipe Fittings in Dubai, UAE. Known for its unwavering dedication to quality and precision, the company delivers high-grade fittings that meet international standards like ASTM and ANSI. These fittings are designed for durability, reliability, and outstanding performance across a range of industries, including oil and gas, power generation, and petrochemicals. By blending cutting-edge technology with skilled craftsmanship, Kanak Fittings offers tailored solutions that cater to various client needs while providing exceptional value and long-lasting results.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

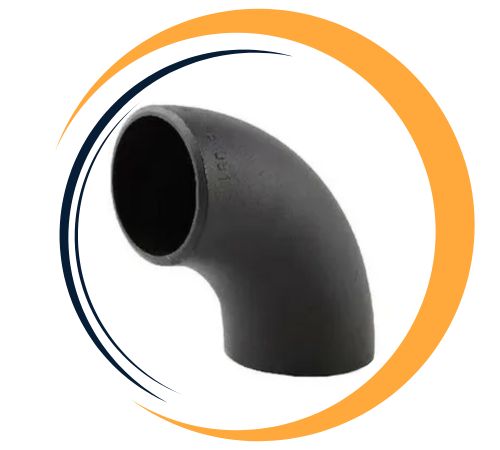

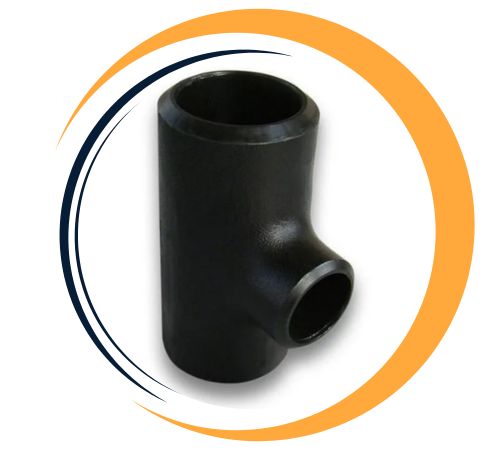

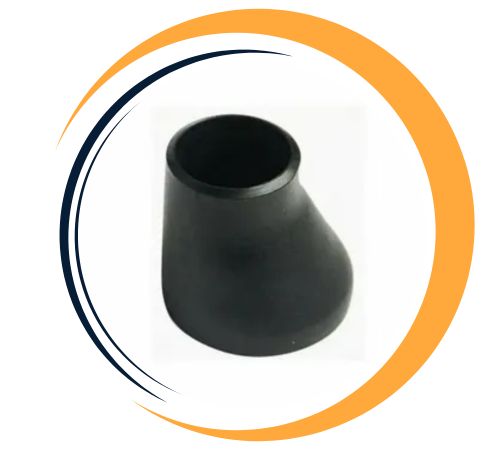

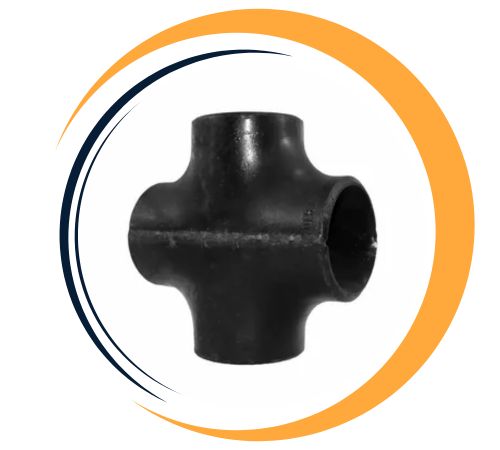

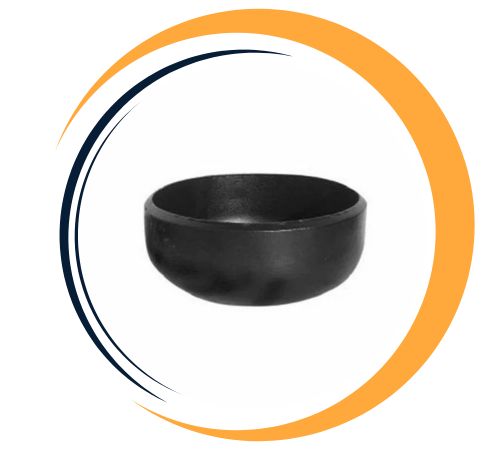

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Alloy Steel WP1 Pipe Fittings are made from a mix of chromium, molybdenum, and other alloying elements, giving them remarkable resistance to corrosion, high temperatures, and mechanical stress. They boast impressive tensile strength, yield strength, and elongation properties, making them perfect for tough industrial applications. With excellent thermal stability and improved weldability, WP1 fittings can withstand extreme pressures and temperatures. Manufactured to meet international standards, they are suitable for both low and high-pressure settings, ensuring a long lifespan and reliable performance in critical operations.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP1 | 0.28 max | 0.30- 0.90 | 0.10- 0.50 | 0.045 max | 0.045 max | – | 0.044-0.65 max |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP1 | 220 min | 415 min | 20 |
Kanak Fittings is a leading supplier of Alloy Steel WP1 Pipe Fittings in Dubai, UAE. We offer an extensive range of Alloy Steel WP1 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP1 Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP1 Pipe Fittings offer excellent strength and durability, making them ideal for high-pressure and high-temperature applications. Their corrosion resistance ensures longevity in harsh environments, including chemical processing and power plants. These fittings provide thermal stability and resistance to oxidation, ensuring reliable performance under fluctuating temperatures. With superior weldability and machinability, they facilitate efficient installation and customization. Their cost-effectiveness and versatility make them suitable for diverse industries such as oil and gas, petrochemicals, and refineries. Additionally, they exhibit dimensional accuracy, ensuring leak-proof connections and enhanced system efficiency.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP1 Pipe Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Alloy Steel WP1 Pipe Fittings find extensive use in sectors like oil and gas, power generation, chemical processing, and refineries. Their sturdy design makes them perfect for transporting high-pressure fluids and gases, particularly in high-temperature conditions. These fittings are commonly found in pipelines, boilers, heat exchangers, and pressure vessels. Thanks to their superior corrosion resistance and mechanical strength, WP1 fittings promote smooth flow, minimize leakage risks, and boost system efficiency. Their versatility and durability make them a vital part of various high-performance piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
