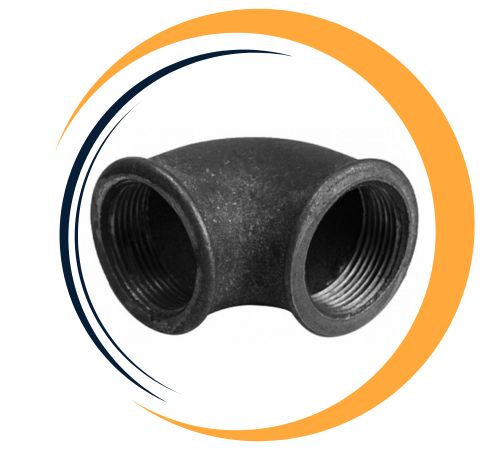

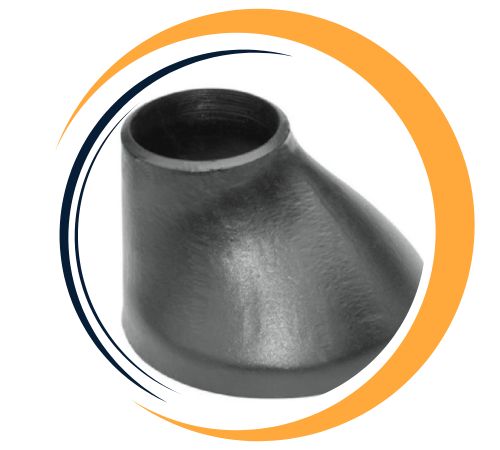

Kanak Fittings has established itself as a reliable manufacturer and supplier of Alloy Steel WP11 Buttweld Fittings in Dubai, UAE. Known for their precision and quality, they offer a diverse selection of fittings that adhere to international standards, including elbows, tees, reducers, and caps. These fittings are crafted to deliver strong solutions for high-pressure and high-temperature applications. Thanks to advanced manufacturing techniques and rigorous quality control, Kanak Fittings guarantees products that are dependable, durable, and high-performing. Their dedication to innovation and customer satisfaction has made them a go-to partner in sectors like oil and gas, petrochemicals, and power generation.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
Alloy Steel WP11 Buttweld Fittings are made from a chromium-molybdenum alloy, which offers outstanding resistance to oxidation, corrosion, and high-temperature conditions. This material includes essential elements like 1.25% chromium and 0.5% molybdenum, which boost its strength and thermal stability. These fittings showcase impressive mechanical properties, such as high tensile strength, yield strength, and elongation, making them perfect for challenging applications. Meeting ASME and ASTM standards, WP11 fittings provide excellent weldability, formability, and durability, making them suitable for high-pressure and temperature systems in various industrial settings.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415-585 | ≥205 | ≥20 |
Kanak Fittings one of the largest suppliers of Alloy Steel WP11 Buttweld Fittings in Dubai, UAE. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP11 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP11 Buttweld Fittings in the UAE.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP11 Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| ASTM A234 WP11 Fittings Temperature Ratings | Types Of Pressure Ratings Class | ||||
|---|---|---|---|---|---|
| Class 150# | Class 300# | ||||
| 1/4 – 1 (Inch) | 1 1/4 – 2 (Inch) | 2 1/2 – 3 (Inch) | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Alloy Steel WP11 Buttweld Fittings offer numerous advantages, making them ideal for high-pressure, high-temperature applications. Their composition, featuring chromium and molybdenum, enhances their resistance to oxidation, corrosion, and wear, ensuring long-term durability. WP11 fittings have excellent weldability, strength, and thermal stability, which makes them suitable for demanding industries such as power generation, petrochemical, and oil & gas. They provide superior resistance to thermal fatigue and stress, reducing the risk of failure in extreme conditions. Additionally, WP11 Fittings offer minimal maintenance and extended service life, ensuring cost-effectiveness and reliable performance.
| Normal Size Of Pipe (DN) | Schedule Number | Outer Daimeter In inch millmeter | Wall Thickness inch millmeter | Mass lb/ft kg/m |
|---|---|---|---|---|
| 1/8 6 | 5S | 0.405 10.3 | … | … |
| 1/8 6 | 10S | 0.405 10.3 | 0.049 1.24 | 0.19 0.28 |
| 1/8 6 | 40S | 0.405 10.3 | 0.068 1.73 | 0.24 0.37 |
| 1/8 6 | 80S | 0.405 10.3 | 0.095 2.41 | 0.31 0.47 |
| 1/4 8 | 5S | 0.540 13.7 | … | … |
| 1/4 8 | 10S | 0.540 13.7 | 0.065 1.65 | 0.33 0.49 |
| 1/4 8 | 40S | 0.540 13.7 | 0.088 2.24 | 0.43 0.63 |
| 1/4 8 | 80S | 0.540 13.7 | 0.119 3.02 | 0.54 0.80 |
| 3/8 10 | 5S | 0.675 17.1 | … | … |
| 3/8 10 | 10S | 0.675 17.1 | 0.065 1.65 | 0.42 0.63 |
| 3/8 10 | 40S | 0.675 17.1 | 0.091 2.31 | 0.57 0.84 |
| 3/8 10 | 80S | 0.675 17.1 | 0.126 3.20 | 0.74 1.10 |
| 1/2 15 | 5S | 0.840 21.3 | 0.065 1.65 | 0.54 0.80 |
| 1/2 15 | 10S | 0.840 21.3 | 0.083 2.11 | 0.67 1.00 |
| 1/2 15 | 40S | 0.840 21.3 | 0.109 2.77 | 0.85 1.27 |
| 1/2 15 | 80S | 0.840 21.3 | 0.147 3.73 | 1.09 1.62 |
| 3/4 20 | 5S | 1.050 26.7 | 0.065 1.65 | 0.68 1.02 |
| 3/4 20 | 10S | 1.050 26.7 | 0.083 2.11 | 0.86 1.28 |
| 3/4 20 | 40S | 1.050 26.7 | 0.113 2.87 | 1.13 1.69 |
| 3/4 20 | 80S | 1.050 26.7 | 0.154 3.91 | 1.48 2.20 |
| 1 25 | 5S | 1.315 33.4 | 0.065 1.65 | 0.68 1.02 |
| 1 25 | 10S | 1.315 33.4 | 0.083 2.11 | 0.86 1.28 |
| 1 25 | 40S | 1.315 33.4 | 0.133 3.38 | 1.68 2.50 |
| 1 25 | 80S | 1.315 33.4 | 0.179 4.55 | 2.17 3.24 |
| 1-1/4 32 | 5S | 1.660 42.2 | 0.065 1.65 | 1.11 1.65 |
| 1-1/4 32 | 10S | 1.660 42.2 | 0.109 2.77 | 1.81 2.69 |
| 1-1/4 32 | 40S | 1.660 42.2 | 0.140 3.56 | 2.27 3.39 |
| 1-1/4 32 | 80S | 1.660 42.2 | 0.191 4.85 | 3.00 4.47 |
| 1-1/2 40 | 5S | 1.900 48.3 | 0.065 1.65 | 1.28 1.90 |
| 1-1/2 40 | 10S | 1.900 48.3 | 0.109 2.77 | 2.09 3.11 |
| 1-1/2 40 | 40S | 1.900 48.3 | 0.145 3.68 | 2.72 4.05 |
| 1-1/2 40 | 80S | 1.900 48.3 | 0.200 5.08 | 3.63 5.41 |
| 2 50 | 5S | 2.375 60.3 | 0.065 1.65 | 1.61 2.39 |
| 2 50 | 10S | 2.375 60.3 | 0.109 2.77 | 2.64 3.93 |
| 2 50 | 40S | 2.375 60.3 | 0.154 3.91 | 3.66 5.44 |
| 2 50 | 80S | 2.375 60.3 | 0.218 5.54 | 5.03 7.48 |
| 2-1/2 65 | 5S | 2.875 73 | 0.083 2.11 | 2.48 3.69 |
| 2-1/2 65 | 10S | 2.875 73 | 0.120 3.05 | 3.53 5.26 |
| 2-1/2 65 | 40S | 2.875 73 | 0.203 5.16 | 5.80 8.63 |
| 2-1/2 65 | 80S | 2.875 73 | 0.276 7.01 | 7.67 11.41 |
| 3 80 | 5S | 3.500 88.9 | 0.083 2.11 | 3.03 4.52 |
| 3 80 | 10S | 3.500 88.9 | 0.120 3.05 | 4.34 6.46 |
| 3 80 | 40S | 3.500 88.9 | 0.216 5.49 | 7.58 11.29 |
| 3 80 | 80S | 3.500 88.9 | 0.300 7.62 | 10.26 15.27 |
| 3-1/2 90 | 5S | 4.000 101.6 | 0.083 2.11 | 3.48 5.18 |
| 3-1/2 90 | 10S | 4.000 101.6 | 0.120 3.05 | 4.98 7.41 |
| 3-1/2 90 | 40S | 4.000 101.6 | 0.226 5.74 | 9.12 13.57 |
| 3-1/2 90 | 80S | 4.000 101.6 | 0.318 8.08 | 12.52 18.64 |
| 4 100 | 5S | 4.500 114.3 | 0.083 2.11 | 3.92 5.84 |
| 4 100 | 10S | 4.500 114.3 | 0.120 3.05 | 5.62 8.37 |
| 4 100 | 40S | 4.500 114.3 | 0.237 6.02 | 10.80 16.08 |
| 4 100 | 80S | 4.500 114.3 | 0.337 8.56 | 15.00 22.32 |
| 5 125 | 5S | 5.563 141.3 | 0.109 2.77 | 6.36 9.46 |
| 5 125 | 10S | 5.563 141.3 | 0.134 3.40 | 7.78 11.56 |
| 5 125 | 40S | 5.563 141.3 | 0.258 6.55 | 14.63 21.77 |
| 5 125 | 80S | 5.563 141.3 | 0.375 9.53 | 20.80 30.97 |
| 6 150 | 5S | 6.625 168.3 | 0.109 2.77 | 7.59 11.31 |
| 6 150 | 10S | 6.625 168.3 | 0.134 3.40 | 9.30 13.83 |
| 6 150 | 40S | 6.625 168.3 | 0.280 7.11 | 18.99 28.26 |
| 6 150 | 80S | 6.625 168.3 | 0.432 10.97 | 28.60 42.56 |
Yes, custom sizes are available for Alloy Steel WP11 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@kanakfittings.ae.
Alloy Steel WP11 Buttweld Fittings find extensive use in industries like oil and gas, power generation, chemical processing, and refineries. They are particularly well-suited for high-temperature and high-pressure applications, ensuring effective transport of fluids and gases. These fittings are frequently used in boiler systems, heat exchangers, and piping systems that handle corrosive and abrasive materials. With their remarkable thermal resistance and mechanical strength, WP11 fittings help maintain system integrity and longevity. Their seamless design significantly reduces the risk of leaks, making them an essential choice for reliable industrial applications.
