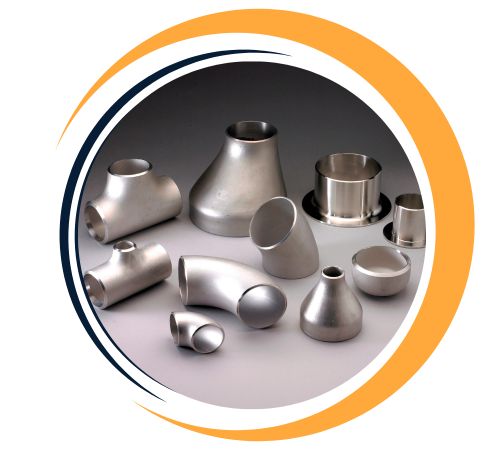

Kanak Fittings stands out as a top manufacturer and supplier of ASTM A860 WPHY 70 pipe fittings in Dubai, UAE. Renowned for its commitment to high-quality and durable solutions, the company caters to a variety of industries, including oil and gas, petrochemical, and construction. With a strong emphasis on precision engineering and compliance with international standards, Kanak Fittings offers an extensive selection of WPHY 70 fittings, such as elbows, tees, reducers, and caps. Their unwavering dedication to customer satisfaction and competitive pricing has solidified their reputation as a reliable name in the piping solutions market.
| size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
|---|---|
| Dimensions | BS4504, ASME B16.28, ASME/ANSI B16.9, MSS-SP-43, BS4504, BS1560, BS10 |
| Thickness | SCH20, SCH 100, SCH30, STD SCH40, SCH10, SCH60, XS, SCH 80, SCH 120, SCH 140, SCH 160, XXS |
| Type | DN15-DN1200 |
| Connection | Welding |
| Elbows Manufacturer | Angle : 1.0D, 22.5 deg, 90 deg, 30deg, 45 deg, 180 deg, 5D, 6D, 1.5D, 2.0D, 2.5D, 3D, 4D, 7D-40D . Standard: ASME B16.9, ASME B16.28, BS, GB, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, ISO |
| Manufacturing process | Press, Push, Forge, Cast, etc. |
| Surface treatment | Sand Rolling, Sand blasting, Sand Blasting |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | USA, Korean, Japanese, Indian, European, Ukraine, Russian |
| Key markets and industries |
|
| Specialized Manufacturer of | Pipe Bend, Crosses, 45º Elbows, Reducers, Tees, 90º Elbows, Pipe Cap, Stub End |
ASTM A860 WPHY 70 pipe fittings are crafted from high-strength, low-alloy steel, specifically designed for high-pressure applications. Their composition features key elements like carbon, manganese, and micro-alloying components such as vanadium and niobium, which significantly boost their mechanical properties. These fittings are known for their impressive tensile strength, yield strength, and outstanding toughness, making them perfect for challenging environments. They also offer excellent weldability and resistance to impact and corrosion. By adhering to ASTM standards, WPHY 70 fittings are well-suited for high-stress applications, ensuring they deliver long-lasting performance and reliability even in extreme conditions.
|
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
Cu |
Ti |
V |
Cb |
Al |
|
|
A860 |
0.20 |
1.00-1.45 |
0.03 |
0.01 |
0.15-0.40 |
0.50 |
0.30 |
0.25 |
0.35 |
0.05 |
0.10 |
0.04 |
0.06 |
| Element | Tensile Strength(Min PSI) | Yield Strength (Min PSI) | Elongation(%, in 2in.) |
| WPHY 70 | 82000 PSI | 70000 PSI | 20 % |
Kanak Fittings is a leading supplier of ASTM A860 WPHY 70 Pipe Fittings in Dubai, UAE. We offer an extensive range of ASTM A860 WPHY 70 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 70 Pipe Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
ASTM A860 WPHY 70 Pipe Fittings offer several key advantages, including exceptional strength and durability, with a tensile strength of 760 MPa and yield strength of 520 MPa, making them ideal for high-pressure applications. These fittings are highly resistant to impact, corrosion, and wear, ensuring long-lasting performance in harsh environments. Their excellent toughness makes them suitable for low-temperature and offshore applications. Designed for secure, leak-proof connections, ASTM A860 WPHY 70 fittings reduce maintenance and downtime, providing a reliable and cost-effective solution for critical pipeline systems in industries like oil, gas, and petrochemicals.
Yes, custom sizes for ASTM A860 WPHY 70 Pipe Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
ASTM A860 WPHY 70 pipe fittings find extensive use in high-pressure piping systems across various sectors, including oil and gas, petrochemical, and power generation. They are particularly well-suited for applications that demand exceptional strength and durability, such as offshore platforms, refineries, and pipelines. These fittings effectively manage the flow of high-pressure fluids and gases, ensuring minimal leakage and operational safety. Their resistance to corrosion and robust mechanical properties make them ideal for harsh environments, including sour gas service and high-temperature operations. Their reliability and performance not only enhance system longevity but also help reduce maintenance costs.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
