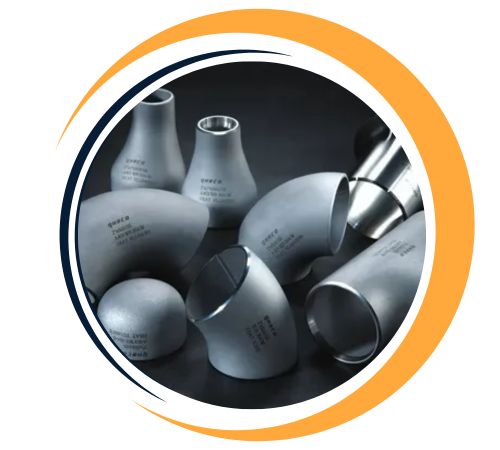

Kanak Fittings is a well-respected manufacturer and supplier of Inconel 600 Buttweld Fittings based in Dubai, UAE. We pride ourselves on providing top-notch piping components that are built to withstand extreme temperatures and harsh corrosive environments. Inconel 600, which is a nickel-chromium-iron alloy, is renowned for its remarkable oxidation resistance and impressive mechanical strength. Our selection of buttweld fittings includes elbows, tees, reducers, and caps, all crafted to meet international standards and designed for critical industrial applications. With a strong focus on quality, timely delivery, and customer satisfaction, Kanak Fittings caters to a diverse array of industries, including chemical processing, power generation, marine, aerospace, and thermal processing throughout the UAE and the Middle East.
| Specifications | ASTM B366 / ASME SB366 |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 | standard for – Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 | Buttwelding Ends. |
| ASME B16.28 | standard for – Butt-Welded Short Radius Elbows & Returns Bends |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Seamless Butt Weld Fitting Size | 1/2″ – 10″ |
| Welded Butt Weld Fittings Size | 1/2″ – 48″ |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
Inconel 600 Buttweld Fittings are made up of a chemical composition that includes about 72% nickel, 14–17% chromium, and 6–10% iron, along with trace amounts of carbon, manganese, and silicon. These fittings are known for their outstanding resistance to oxidation, corrosion, and chloride-ion stress corrosion cracking. Their mechanical properties boast a minimum tensile strength of 655 MPa, a yield strength of 310 MPa, and an elongation of 30%. Inconel 600 retains its strength and structural integrity across a broad temperature range, from cryogenic conditions to over 1000°C. Additionally, it provides excellent metallurgical stability, weldability, and performance in both oxidizing and reducing environments.
| Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
| 600 | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
| max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – | |
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Kanak Fittings is a leading supplier of Inconel 600 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Inconel 600 Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Inconel 600 Buttweld Fittings offer numerous advantages, including exceptional resistance to oxidation, carburization, and high-temperature corrosion, making them ideal for extreme environments. They provide excellent strength and stability at elevated temperatures, up to 2000°F (1093°C), ensuring reliable performance. The alloy’s high nickel content enhances its resistance to stress corrosion cracking and chloride-induced corrosion. Additionally, Inconel 600 fittings are highly durable, with superior weldability and fabricability, making them suitable for critical applications in industries like aerospace, chemical processing, and power generation. Their longevity and reliability reduce maintenance costs and downtime.
Yes, custom sizes for Inconel 600 Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Inconel 600 Buttweld Fittings find extensive use in high-temperature and corrosive settings across various industries. Common applications include piping systems in heat treatment furnaces, chemical reactors, evaporators, condensers, and heat exchangers. The alloy’s exceptional resistance to thermal cycling and chloride-induced stress corrosion makes it particularly suitable for marine, power generation, and aerospace applications. It’s also utilized in nuclear engineering and food processing equipment, where hygiene and durability are paramount. With a long service life and remarkable mechanical integrity, Inconel 600 fittings guarantee reliability even in the most demanding conditions.
