Kanak Fittings stands out as a top-notch manufacturer and supplier of Reducing Outlet Tees, proudly based in Dubai, UAE. Renowned for their precision engineering and commitment to high-quality materials, these fittings are expertly crafted to connect pipes of varying diameters seamlessly, ensuring a smooth flow throughout. Kanak Fittings serves a wide range of industries, including oil and gas, chemical processing, water treatment, and construction. The company places a strong emphasis on rigorous quality control and adherence to international standards, guaranteeing that their products are both durable and reliable. With a reputation for timely delivery and outstanding customer support, Kanak Fittings has built a solid standing both locally and globally for its exceptional reducing outlet tees.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Reducing Tee and Crosses, Fitting Outlet Reducing Tee and Crosses
Reducing Outlet Tees are specialized pipe fittings that feature a branch outlet smaller than the main run pipe size, allowing for a controlled reduction in both flow and pressure. Typically crafted from materials like carbon steel, stainless steel, or various alloy metals, these tees are tailored to meet specific application needs. They provide excellent mechanical strength, corrosion resistance, and weldability. The design promotes a smooth transition of fluids between different pipe sizes, effectively minimizing turbulence and pressure loss. Their dimensions and thicknesses align with standards such as ASME B16.9 and ASTM specifications, ensuring dependable performance across various piping systems.

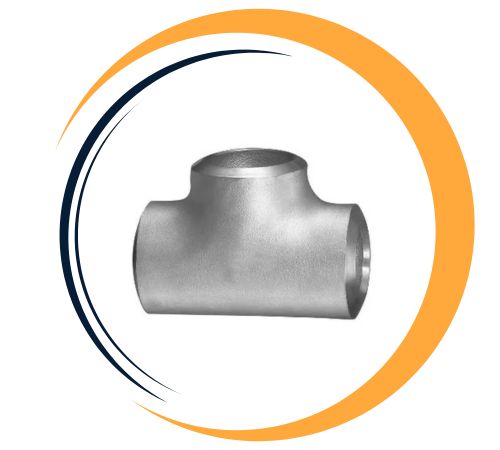

Stainless Steel Buttweld Reducing Tees & Crosses : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

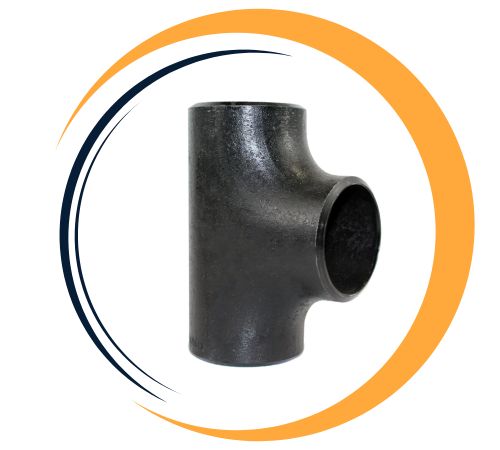

Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

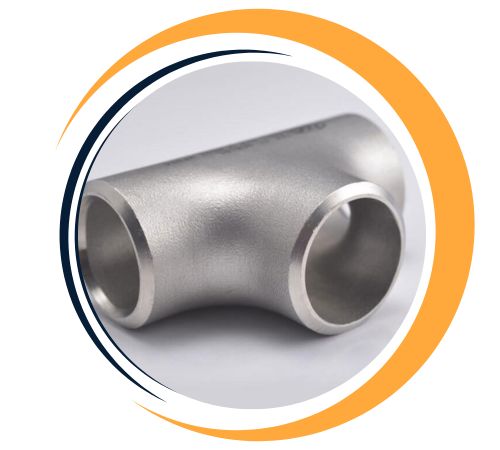

Alloy Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

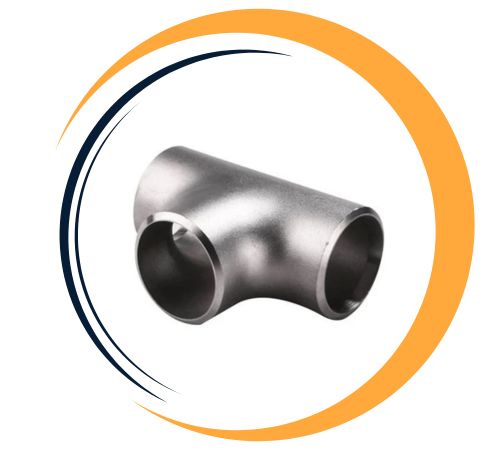

Duplex Steel Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

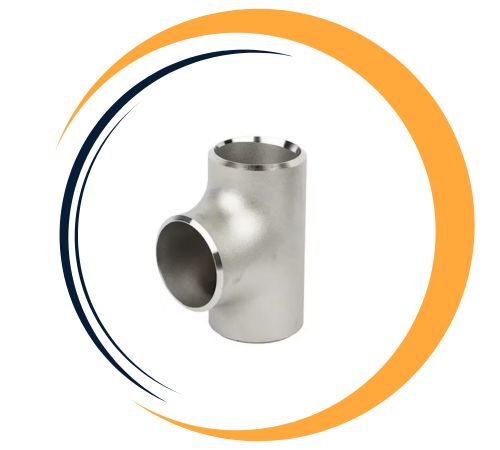

Super Duplex Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

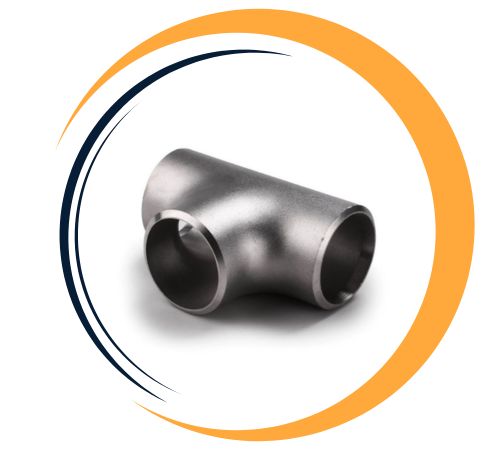

Nickel Alloy Buttweld Reducing Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Kanak Fittings is a leading supplier of Reducing Outlet Tees in Dubai, UAE. We offer an extensive range of Reducing Outlet Tees, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Reducing Outlet Tees from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Reducing Outlet Tees offer several advantages, including the ability to efficiently reduce the size of a pipeline while maintaining optimal flow distribution. These fittings are designed to seamlessly branch off from a main pipeline, providing versatility in fluid and gas systems. Made from high-quality materials like stainless steel and alloys, they offer excellent corrosion resistance and durability in demanding environments. Reducing Outlet Tees can withstand high pressure and temperature, ensuring reliable performance in industries such as oil and gas, chemical processing, and water treatment. Their compact design also simplifies installation and maintenance.
Yes, custom sizes for Reducing Outlet Tees are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
| Nominal Pipe Size (NPS) | DN | Outlet Diameter at Bevel | Center- to-End | ||
| Run | Outlet | Run.C | Outlet. M[Notes(1)] | ||
| 1/2*1/2*3/8 | 15*15*10 | 21.3 | 17.3 | 25 | 25 |
| 1/2*1/2*1/4 | 15*15*8 | 21.3 | 13.7 | 25 | 25 |
| 3/4*3/4*1/2 | 20*20*15 | 26.7 | 21.3 | 29 | 29 |
| 3/4*3/4*3/8 | 20*20*10 | 26.7 | 17.3 | 29 | 29 |
| 1*1*3/4 | 25*25*20 | 33.4 | 26.7 | 38 | 38 |
| 1*1*1/2 | 25*25*15 | 33.4 | 21.3 | 38 | 38 |
| 1-1/4*1-1/4*1 | 32*32*25 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4*1-1/4*3/4 | 32*32*20 | 42.2 | 26.7 | 48 | 48 |
| 1-1/4*1-1/4*1/2 | 32*32*15 | 42.2 | 21.3 | 48 | 48 |
| 1-1/2*1-1/2*1-1/4 | 40*40*32 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2*1-1/2*1 | 40*40*25 | 48.3 | 33.4 | 57 | 57 |
| 1-1/2*1-1/2*3/4 | 40*40*20 | 48.3 | 26.7 | 57 | 57 |
| 1-1/2*1-1/2*1/2 | 40*40*15 | 48.3 | 21.3 | 57 | 57 |
| 2*2*1-1/2 | 50*50*40 | 60.3 | 48.3 | 64 | 60 |
| 2*2*1-1/4 | 50*50*32 | 60.3 | 42.2 | 64 | 57 |
| 2*2*1 | 50*50*25 | 60.3 | 33.4 | 64 | 51 |
| 2*2*3/4 | 50*50*20 | 60.3 | 73.0 | 64 | 44 |
| 2-1/2*2-1/2*2 | 65*65*50 | 73.0 | 60.3 | 76 | 70 |
| 2-1/2*2-1/2*1-1/2 | 65*65*40 | 73.0 | 48.3 | 76 | 67 |
| 2-1/2*2-1/2*1-1/4 | 65*65*32 | 73.0 | 42.2 | 76 | 64 |
| 2-1/2*2-1/2*1 | 65*65*25 | 73.0 | 88.9 | 76 | 57 |
| 3*3*2-1/2 | 80*80*65 | 88.9 | 73.0 | 86 | 83 |
| 3*3*2 | 80*80*50 | 88.9 | 60.3 | 86 | 76 |
| 3*3*1-1/2 | 80*80*40 | 88.9 | 48.3 | 86 | 73 |
| 3*3*1-1/4 | 80*80*32 | 88.9 | 101.6 | 86 | 70 |
| 3-1/2*3-1/2*3 | 90*90*80 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2*3-1/2*2-1/2 | 90*90*65 | 101.6 | 73.0 | 95 | 89 |
| 3-1/2*3-1/2*2 | 90*90*50 | 101.6 | 60.3 | 95 | 83 |
| 3-1/2*3-1/2*1-1/2 | 90*90*40 | 101.6 | 48.3 | 95 | 79 |
| 4*4*3-1/2 | 100*100*90 | 114.3 | 101.6 | 105 | 102 |
| 4*4*3 | 100*100*80 | 114.3 | 88.9 | 105 | 98 |
| 4*4*2-1/2 | 100*100*65 | 114.3 | 73.0 | 105 | 95 |
| 4*4*2 | 100*100*50 | 114.3 | 60.3 | 105 | 89 |
| 4*4*1-1/2 | 100*100*40 | 114.3 | 48.3 | 105 | 86 |
| 5*5*4 | 125*125*100 | 141.3 | 114.3 | 124 | 117 |
| 5*5*3-1/2 | 125*125*90 | 141.3 | 101.6 | 124 | 114 |
| 5*5*3 | 125*125*80 | 141.3 | 88.9 | 124 | 111 |
| 5*5*2-1/2 | 125*125*65 | 141.3 | 73.6 | 124 | 108 |
| 5*5*2 | 125*125*50 | 141.3 | 60.3 | 124 | 105 |
These versatile Reducing Outlet Tees find extensive use in industries where piping networks require branch connections with differing pipe diameters. In the oil and gas sector, they play a crucial role in distributing fluids within refineries and pipelines. Chemical and petrochemical plants rely on them to manage process flows and connect equipment of various sizes. Water treatment and power generation facilities incorporate reducing outlet tees into their intricate piping systems to enhance flow and pressure control. Additionally, they are commonly found in HVAC systems, construction projects, and industrial manufacturing, making them essential components for efficient fluid handling across numerous sectors.
