Kanak Fittings is a well-respected manufacturer and supplier of Nickel Alloy 201 Buttweld Fittings, proudly based in Dubai, UAE. The company has built a solid reputation for providing precision-engineered, corrosion-resistant piping components that cater to various industries, including chemical processing, marine, power generation, electronics, and pharmaceuticals. Designed to excel in highly corrosive and high-temperature environments, Nickel Alloy 201 Buttweld Fittings boast impressive mechanical properties and workability. Kanak Fittings is committed to upholding international quality standards through advanced manufacturing techniques and thorough quality checks. With a focus on reliable service, timely delivery, and customer-centric solutions, the company has become a trusted supplier throughout the UAE and in global industrial markets.
| Specifications | : | ASTM B366 / ASME SB366 |
| Size | : | Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | : | Seamless / Welded / Fabricated |
These Nickel Alloy 201 Buttweld Fittings are crafted from commercially pure nickel (at least 99.6%), featuring very low carbon content to boost resistance against intergranular corrosion. This alloy is known for its excellent thermal and electrical conductivity, remarkable resistance to alkaline and reducing environments, and solid mechanical properties. Typical specifications include a tensile strength of around 380 MPa and a yield strength of about 105 MPa, along with outstanding ductility and toughness. These fittings maintain their structural integrity even at high temperatures and perform exceptionally well in both acidic and alkaline chemical settings.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Kanak Fittings is a leading supplier of Nickel Alloy 201 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Nickel Alloy 201 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Nickel Alloy 201 Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Nickel Alloy 201 Buttweld Fittings offer excellent corrosion resistance, especially in acidic and high-temperature environments. Known for their outstanding strength and durability, they maintain their integrity even in harsh conditions, making them ideal for chemical, petrochemical, and food processing industries. The fittings provide excellent weldability, ensuring smooth and reliable joints. They also exhibit high electrical and thermal conductivity, adding to their versatility. With low carbon content, Nickel Alloy 201 Buttweld Fittings resist carbide precipitation, ensuring longevity and minimal maintenance in critical applications.
Yes, custom sizes for Nickel Alloy 201 Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.

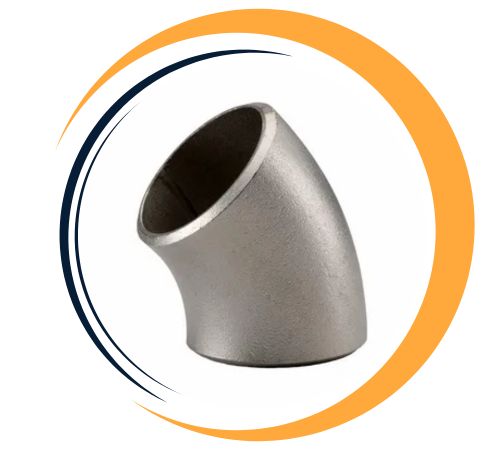

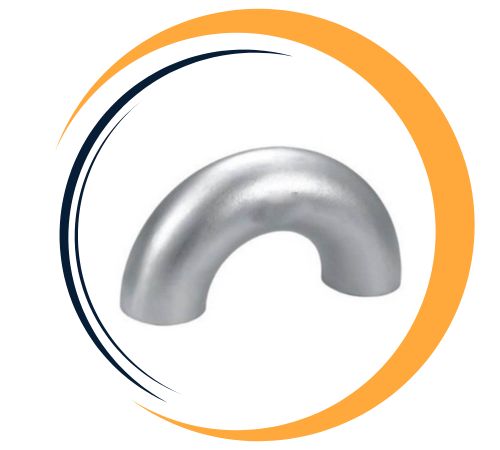

| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Nickel Alloy 201 Buttweld Fittings find extensive use in applications that require high corrosion resistance and purity. In the realm of chemical processing, they are perfect for equipment that handles caustic soda, sulfuric acid, and other aggressive chemicals. The electronics industry relies on them for components that require high electrical conductivity and thermal stability. In marine and offshore applications, they effectively resist corrosion from seawater and brine. Additionally, these fittings are utilized in food processing, synthetic fiber production, and power plants. Their remarkable mechanical strength, ductility, and resistance to corrosive media make them a dependable choice for various industries.
