Super Duplex Steel S32760 Pipe Fittings are top-notch components celebrated for their remarkable strength, durability, and impressive resistance to corrosion. These fittings are a go-to choice in demanding applications and are crafted to meet strict industry standards. With a unique combination of mechanical properties and an outstanding chemical makeup, they serve various industries, including oil and gas, petrochemicals, and marine engineering. Super Duplex Steel S32760 Pipe Fittings guarantee efficient fluid flow, reliability, and enhanced operational safety, making them the preferred option for critical and high-pressure environments around the world.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
Super Duplex Steel S32760 Pipe Fittings are made from a well-balanced blend of chromium (25%), molybdenum (3.5%), and nitrogen, which give them excellent corrosion resistance and high tensile strength. These fittings showcase a dual-phase microstructure (ferritic and austenitic) that boosts toughness and durability. With mechanical properties like a tensile strength exceeding 750 MPa and superior yield strength, they excel under extreme pressure and temperature conditions. Their exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking ensures they provide long-lasting and reliable service in harsh environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Kanak Fittings is a leading supplier of Super Duplex Steel S32760 Pipe Fittings in Dubai, UAE. We offer an extensive range of Super Duplex Steel S32760 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Super Duplex Steel S32760 Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Super Duplex Steel S32760 pipe fittings offer exceptional corrosion resistance, especially against pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh environments like seawater, chemical processing, and oil and gas industries. They combine high strength and excellent toughness, ensuring reliable performance under extreme pressure and temperature conditions. With excellent weldability, these fittings are easy to fabricate, reducing installation time and costs. Their resistance to chloride-induced corrosion and superior mechanical properties enhance longevity, making them a cost-effective solution for demanding industrial applications.

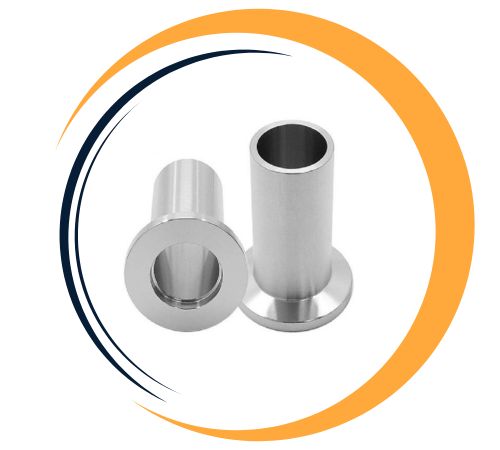

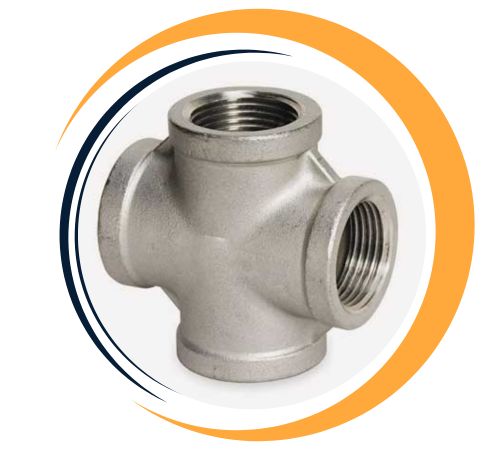

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Super Duplex Steel S32760 Pipe Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Super Duplex Steel S32760 Pipe Fittings are widely utilized in industries that demand strong and corrosion-resistant materials. They are perfect for offshore platforms, subsea piping systems, and chemical processing plants, thanks to their ability to endure high chloride and acidic conditions. These fittings also find applications in desalination plants, heat exchangers, and pressure vessels, ensuring dependable performance even under extreme pressure and temperature changes. Their durability and efficiency make them a top choice for sectors like oil and gas, marine engineering, and power generation, where operational reliability is crucial.
