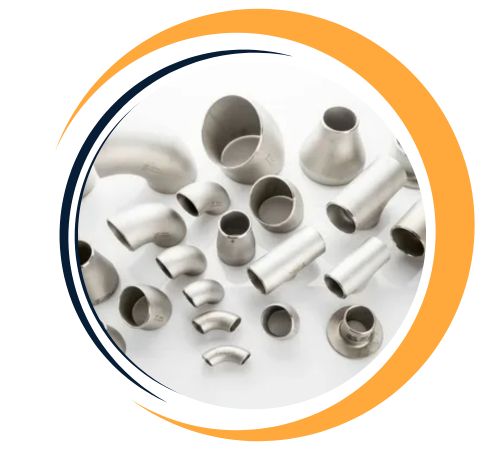

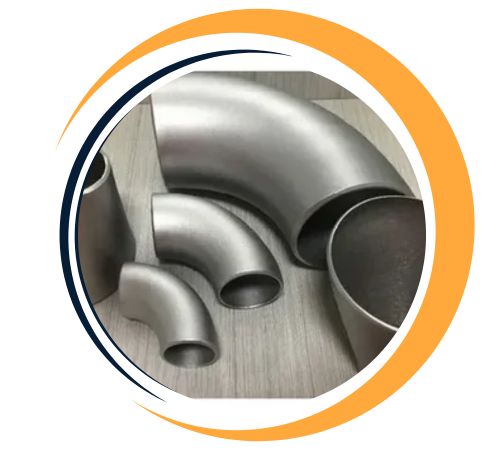

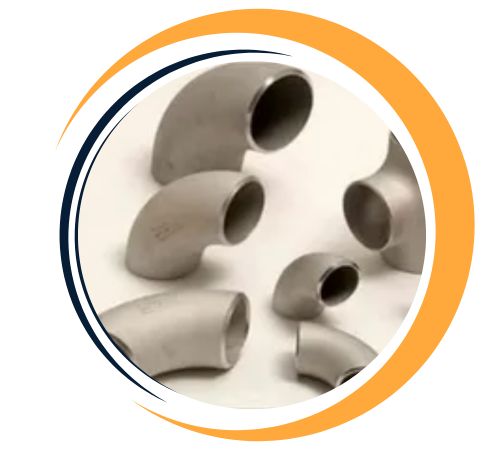

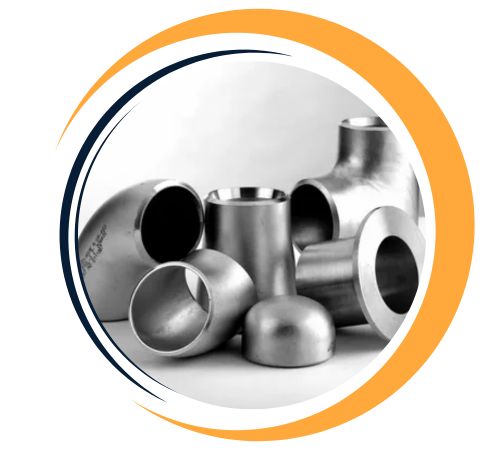

Kanak Fittings is a top-notch manufacturer and supplier of high-quality Incoloy 800, 800H, and 800HT Buttweld Fittings based in Dubai, UAE. Renowned for their exceptional quality and precision engineering, these fittings are designed for industries that demand outstanding performance in high-temperature and corrosive settings. With a strong emphasis on innovation and compliance with international standards, Kanak Fittings provides products that are customized to meet a variety of operational requirements. Whether it’s for petrochemicals, power generation, or marine applications, the company is committed to delivering durable and cost-effective piping solutions, establishing itself as a reliable name in the region’s industrial sector.
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS.
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800, 800H, and 800HT Buttweld Fittings are nickel-iron-chromium alloys crafted for remarkable resistance to corrosion and oxidation at elevated temperatures. Their makeup consists of about 30-35% nickel, 19-23% chromium, along with carefully controlled levels of carbon, aluminum, and titanium. These alloys boast impressive creep rupture strength, tensile strength, and thermal stability. With the addition of carbon and titanium, 800H and 800HT enhance stress-rupture performance. Following ASTM and ASME standards, these fittings are designed to provide long-lasting reliability even in extreme operational conditions.
Kanak Fittings is a leading supplier of Incoloy 800/ 800H/ 800HT Buttweld Fittings in Dubai, UAE. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Incoloy 800/ 800H/ 800HT Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Incoloy 800, 800H, and 800HT buttweld fittings offer numerous advantages, including excellent high-temperature strength and superior resistance to oxidation and carburization. These alloys maintain stability and structural integrity in extreme environments, making them ideal for chemical processing, power plants, and heat exchangers. The addition of titanium in 800H and 800HT improves creep resistance and enhances long-term performance. Their outstanding weldability ensures easy fabrication, while high resistance to corrosion and stress cracking ensures longevity. These alloys provide durability, reducing maintenance and downtime in high-temperature industrial applications.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Incoloy 800/ 800H/ 800HT Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Incoloy 800, 800H, and 800HT Buttweld Fittings find extensive use in industries that require durability against high temperatures and corrosive substances. They are commonly utilized in heat exchangers, pressure vessels, chemical processing equipment, and furnace components. These fittings are perfect for transporting corrosive gases and fluids, as well as high-temperature liquids. Their mechanical strength and thermal stability make them vital in petrochemical refineries, nuclear power plants, and marine environments. With excellent performance under thermal cycling and resistance to oxidation, they ensure reliability in demanding applications.
