Kanak Fittings has established itself as a top player in the manufacturing and supply of high-quality SMO 254 Forged Fittings in Dubai, UAE. Known for its expertise and commitment to quality, the company serves various industries, including oil and gas, marine, petrochemicals, and power generation. SMO 254 Forged Fittings are engineered to perform exceptionally well in extreme conditions, boasting remarkable durability and resistance to corrosion. With a strong focus on innovation and customer satisfaction, Kanak Fittings guarantees that each product meets global standards, making it a reliable choice for critical applications across different sectors.
| 254 Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| 254 SMO Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| 6 Moly Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| SMO 254 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 SMO 254 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| SMO 254 Forged Fittings Thread | NPT, BSPT, BSPP |
| SMO 254 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SMO 254 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

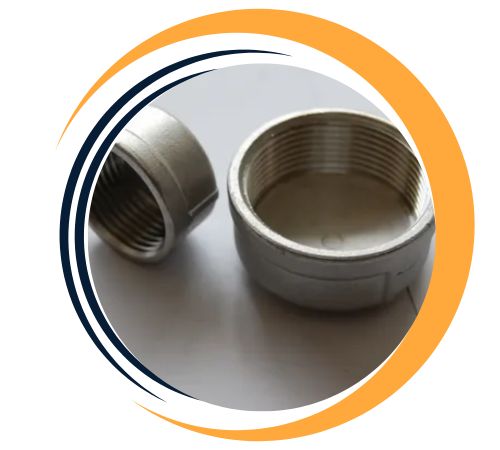

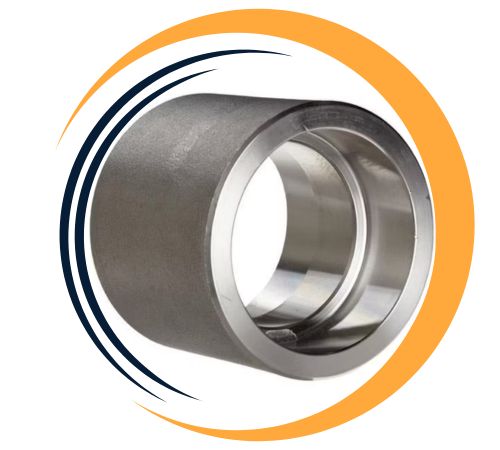

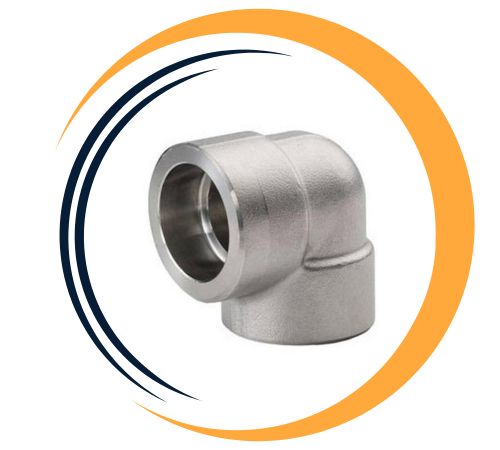

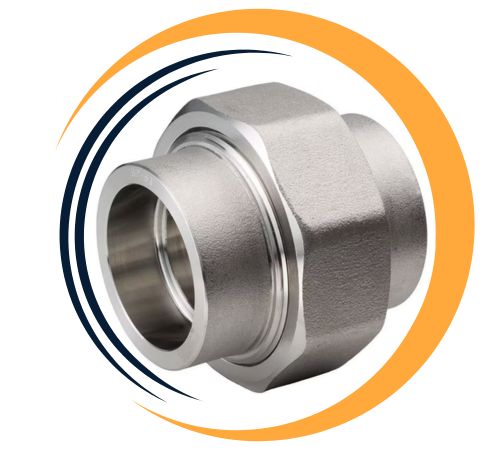

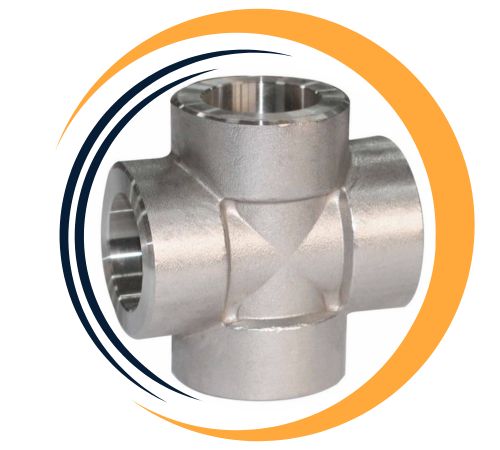

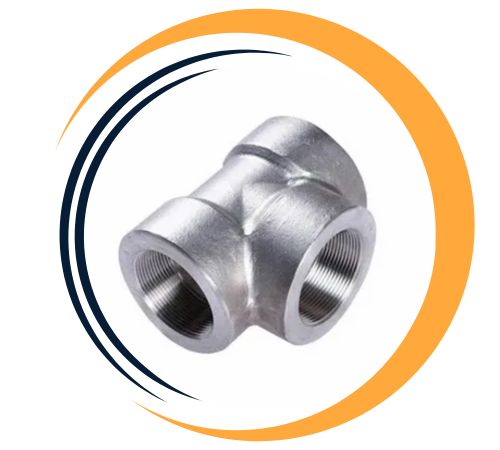

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | 17.5 – 18.5 | 19.5 – 20.5 | 6 – 6.5 | 0.5 – 1 | 0.18 – 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
| Density | Melting Point | Tensilee Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
SMO 254 Forged Fittings are made from austenitic stainless steel that includes high amounts of chromium, nickel, molybdenum, and nitrogen. This unique blend offers outstanding corrosion resistance, especially against pitting and crevice corrosion in environments rich in chlorides. These fittings are known for their high tensile strength, ductility, and excellent weldability. With a tensile strength of about 600 MPa and impressive impact toughness, they can handle tough operating conditions. Complying with international standards like ASTM A182 and ANSI, SMO 254 Forged Fittings provide reliability and durability in demanding industrial settings.
Kanak Fittings is a leading supplier of SMO 254 Forged Fittings in Dubai, UAE. We offer an extensive range of SMO 254 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | SIS 2378 | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic SMO Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | SMO fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Choose SMO 254 Forged Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
SMO 254 Forged Fittings offer many advantages, including exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine, chemical and petrochemical applications Their high molybdenum and chromium content pitting, cracking corrosion and stress corrosion cracks Provides excellent strength for . These fittings also exhibit good strength and durability, ensuring high tensile strength and yield strength, long-term performance in harsh conditions Furthermore, SMO 254 mesh fittings offer excellent weldability and formability, making them versatile for a wide range of industrial applications, providing reliability and cost – efficiency.
Yes, custom sizes for SMO 254 Forged Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
SMO 254 Forged Fittings find extensive use in industries that demand high corrosion resistance and strength, such as offshore oil and gas, chemical processing, desalination plants, and marine applications. These fittings are perfect for transporting aggressive substances like chlorinated water, acids, and saline solutions. Their superior mechanical properties and corrosion resistance make them ideal for heat exchangers, pipelines, and pressure vessels. SMO 254 Forged Fittings not only enhance system efficiency but also ensure reliability, delivering optimal performance in environments where standard materials might not hold up.
