Kanak Fittings stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 321/321H Forged Fittings right here in Dubai, UAE. We’ve built a solid reputation for providing exceptional quality and precision-engineered components, serving a diverse array of industries such as oil & gas, petrochemicals, power plants, and marine applications. Our forged fittings are made with cutting-edge technology and meet international quality standards, guaranteeing durability and performance even in the toughest conditions. With a robust distribution network and a dedication to excellence, Kanak Fittings delivers dependable and timely solutions to clients throughout the UAE and other markets in the Middle East.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings

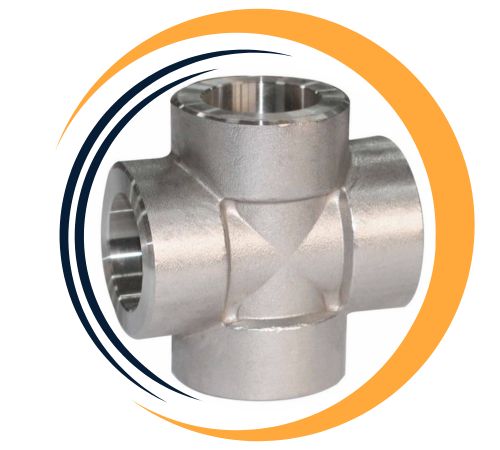

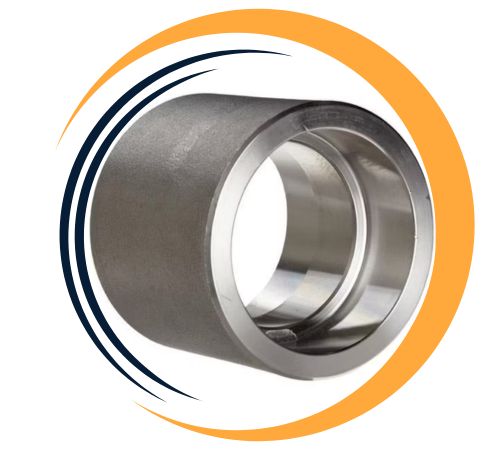

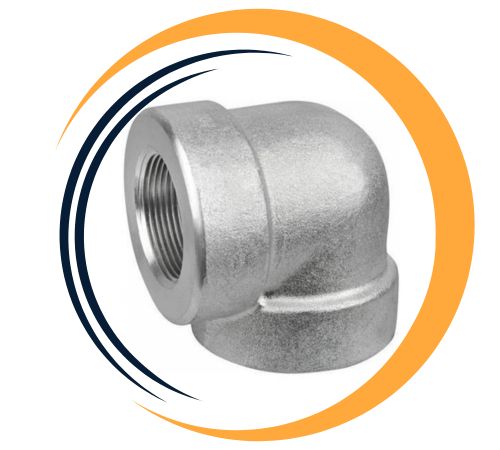

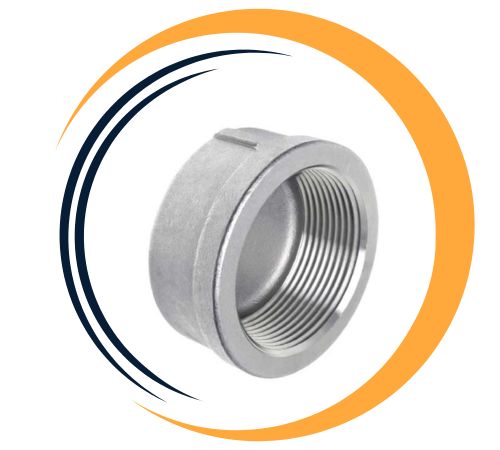

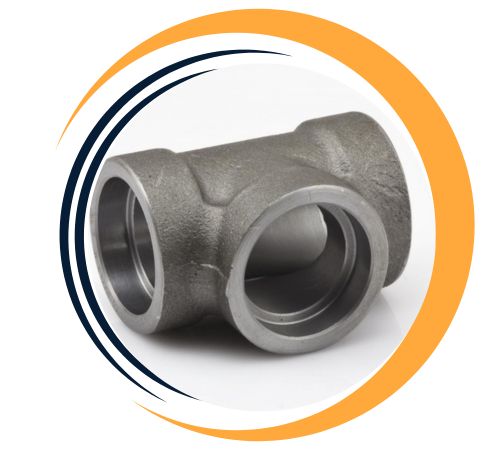

Forged Fittings Items : 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 321 / 321H UNS (S32100, S32109), DIN (1.4541, 1.4878)
Stainless Steel 321/321H Forged Fittings are a type of titanium-stabilized austenitic stainless steel. Their typical chemical makeup includes Chromium (17-19%), Nickel (9-12%), and Titanium (≥5x C), with very low Carbon levels (≤0.08% for 321 and 0.04–0.10% for 321H). These grades are known for their outstanding resistance to intergranular corrosion and impressive strength at high temperatures. They boast mechanical properties like a tensile strength of ≥515 MPa, yield strength of ≥205 MPa, and elongation of ≥40%. The higher carbon content in 321H enhances its creep resistance and strength at elevated temperatures, making these fittings perfect for high-stress, high-temperature applications.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Kanak Fittings is a leading supplier of Stainless Steel 321/321H Forged Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 321/321H Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
Choose Stainless Steel 321/321H Forged Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 321/321H forged fittings offer many advantages, including resistance to high temperature oxidation and corrosion, making them ideal for use in high-temperature environments The addition of titanium stabilizes the material, especially prevents sensitivity and intergranular corrosion in welds. These fittings have excellent strength, high tensile and yield characteristics, and excellent formability, ensuring durability and long-term performance in critical applications Stainless steel 321H, with a high carbon content of 1,000. for higher strength at higher temperatures. Overall, they are highly reliable in the petroleum, aerospace, and power sectors.
Yes, custom sizes for Stainless Steel 321/321H Forged Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
You’ll find Stainless Steel 321/321H Forged Fittings widely utilized in industries that demand excellent corrosion resistance and high-temperature performance. This includes sectors like chemical processing, oil and gas, power generation, heat exchangers, and refineries. Their stability against carbide precipitation makes them ideal for applications that involve continuous and intermittent heating within the 800–1500°F (427–816°C) range. The 321H variant, with its higher carbon content, is particularly favored in high-pressure, high-heat systems such as boilers and superheaters. These fittings are also essential in aerospace engine parts, exhaust manifolds, and furnace components, where strength and resistance to oxidation are crucial for long-lasting performance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
