Kanak Fittings has established itself as a top player in the manufacturing and supply of Stainless Steel 304/304L Forged Fittings right here in Dubai, UAE. Known for their precision and durability, this company delivers products that meet rigorous international standards. These fittings cater to a variety of industries, including oil and gas, petrochemicals, pharmaceuticals, and water treatment. Kanak Fittings is committed to quality, utilizing advanced manufacturing techniques and strict quality control measures. With a focus on customer satisfaction, they provide efficient and sustainable piping solutions, making them a reliable partner in the region.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
When it comes to the Composition and Mechanical Properties of Stainless Steel 304/304L Forged Fittings, these fittings are primarily made up of chromium (18-20%) and nickel (8-12%), with 304L featuring a low carbon content that enhances its weldability. They boast impressive corrosion resistance, high tensile strength, and durability, even in tough environments. These fittings maintain their mechanical integrity under high pressure and temperature, complying with standards like ASTM A182 and ANSI B16.11. The low carbon content in 304L helps reduce carbide precipitation, making these fittings perfect for applications that demand exceptional resistance to intergranular corrosion.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Kanak Fittings is a leading supplier of Stainless Steel 304/304L Forged Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 304/304L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| Products | Size | |
|---|---|---|
| ASTM A182 SS 304 Forged 90° Elbow | ASTM A182 SS 304 Forged 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

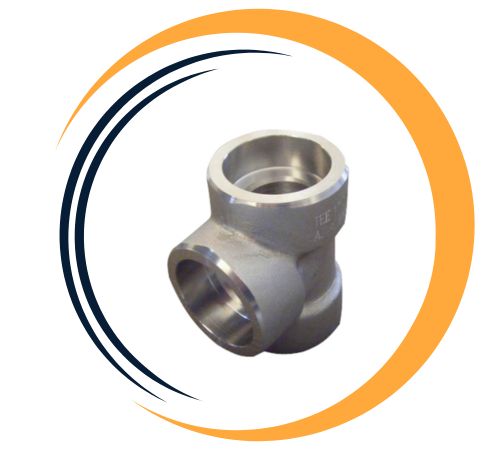

| ASTM A182 SS 304 Forged Tee | ASTM A182 SS 304 Forged Union | |
| ASTM A182 SS 304 Forged Cross | ASTM A182 SS 304 Forged Insert | |
| ASTM A182 SS 304 Forged Bushing | ASTM A182 SS 304 Forged Pipe Nipple | |
| ASTM A182 SS 304 Forged Cap | ASTM A182 SS 304 Forged Coupling | |
| ASTM A182 SS 304 Forged Plug | ASTM A182 SS 304 Forged Street Elbow | |
Choose Stainless Steel 304/304L Forged Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 304/304L forged fittings offer many advantages, including superior corrosion resistance, especially in acidic and alkaline environments, and their high tensile strength and toughness ensure durability under stress and temperature conditions even at higher levels. The low carbon content of 304L improves weldability and reduces the risk of carbide precipitation, thereby maintaining overall system integrity. These fittings are highly resistant to corrosion, oxidation and staining, making them ideal for a wide range of applications including pharmaceutical, food processing and marine etc. Their smooth finish makes for easy maintenance and excellent aesthetic appeal.
Yes, custom sizes for Stainless Steel 304/304L Forged Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
As for the Uses and Applications of Stainless Steel 304/304L Forged Fittings, they are extensively utilized in industries such as oil and gas, chemical processing, power generation, and marine engineering. Their outstanding corrosion resistance makes them ideal for handling corrosive fluids, gases, and high-temperature liquids. These fittings are essential in piping systems, ensuring leak-proof connections and the ability to withstand high-pressure situations. The low carbon composition of 304L is particularly advantageous for welding and in environments with strict hygiene standards, like food processing and pharmaceuticals. Durable and versatile, these fittings guarantee optimal performance and longevity across various applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
