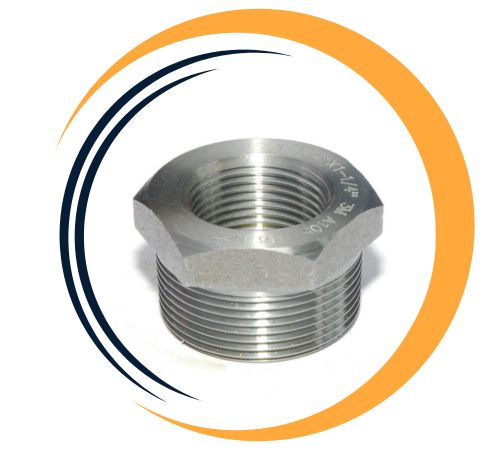

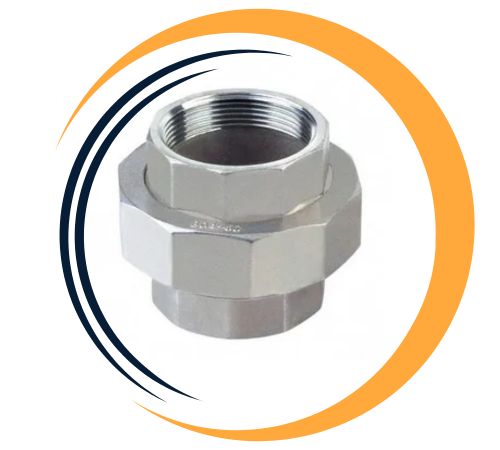

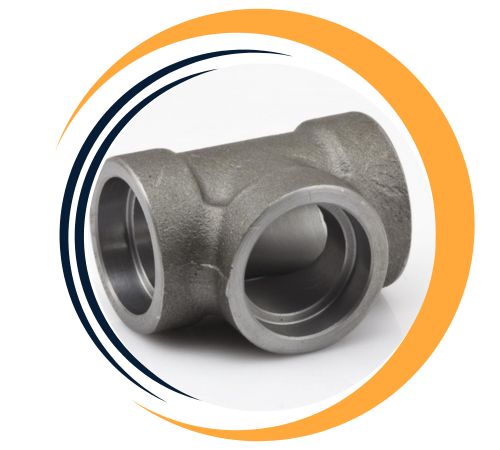

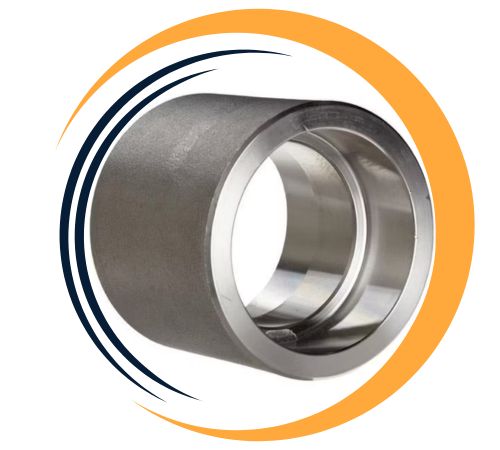

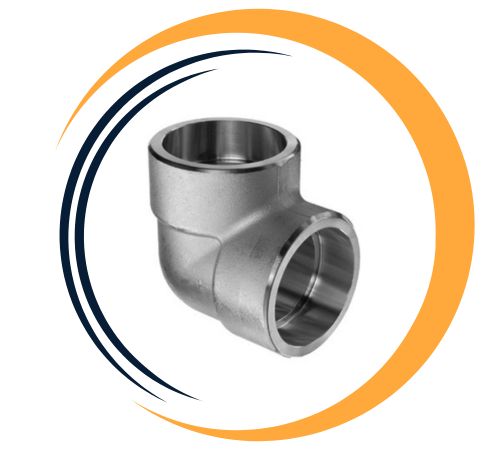

Kanak Fittings is your go-to manufacturer and supplier of Stainless Steel 410 Forged Fittings right here in Dubai, UAE. We pride ourselves on delivering strong and budget-friendly solutions for industries that need moderate corrosion resistance and impressive mechanical strength. Stainless Steel 410 is a martensitic alloy that stands out for its excellent hardness, wear resistance, and ability to be heat-treated. We offer a comprehensive range of forged fittings, including elbows, tees, couplings, unions, plugs, and bushings, all crafted to meet international standards. With a commitment to quality, precision, and timely delivery, Kanak Fittings caters to essential sectors like oil & gas, petrochemical, power, and general engineering throughout the UAE and beyond.
| Standard : | ASTM A182 / ASME SA182 |
| Grade : | S41000/ 410 / 1.4006 |
| Specifications : | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size : | 1/8″~4″ (DN6~DN100) |
| Pressure Class : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type : | Socketweld Fittings, Screwed-Threaded Fittings |
| C | Mn | Si | P | S | Cr | Ni |
| 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 11.5 max: 13.5 | 0.50 max |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 410 | 65 (450) | 30 (205) | 20 | 217 | 96 |
Our Stainless Steel 410 Forged Fittings contain about 11.5–13.5% chromium and have a low carbon content (0.08–0.15%). This unique blend allows the alloy to be hardened through heat treatment, resulting in impressive tensile strength and wear resistance. These fittings boast mechanical properties such as a tensile strength of around 480–700 MPa, yield strength of 270 MPa, and an elongation of about 20%. SS 410 offers moderate corrosion resistance in mildly corrosive environments and maintains its mechanical stability at elevated temperatures up to 650°C, especially when properly hardened and tempered.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Stainless Steel | Tradename | UNS no. | Werkstoff No. |
| 410 | 410 Stainless | S41000 | 1.4006 |
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.276 | 14.4 at 212°F | 56 at 68°F | 29 | 5.90 at 68 – 392°F | 0.11 at 68°F to 212°F | 2700 to 2790 |
| 6.5 at 68 – 1112°F |
Choose Stainless Steel 410 Forged Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 410 forged fittings provide excellent corrosion resistance, high strength and durability, making them ideal for rugged applications Their resistance to oxidation and wear ensures extended service even in harsh environments. These materials are also highly resistant to acids and chemicals, providing a wide range of applications in industries such as petrochemicals, food processing, and power plants in addition to improving the performance of welded 410 stainless steel devices ease of access, allowing flexibility during installation. Its high hardness and strength make it suitable for both high and low temperatures, making it reliable and safe in critical systems.
Yes, custom sizes for Stainless Steel 410 Forged Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
|---|---|---|---|---|---|---|---|---|---|---|
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
You’ll find Stainless Steel 410 Forged Fittings commonly used in applications that demand high strength, wear resistance, and some level of corrosion protection. They’re perfect for steam and gas turbines, valves, pumps, shafts, petrochemical equipment, and heat-resistant structural components. These fittings are also well-suited for refinery processes and water treatment systems where mechanical performance takes precedence over corrosion resistance. Thanks to their ability to handle thermal and mechanical stress, SS 410 forged fittings are a reliable choice for moderate-duty applications in industrial settings that involve high pressure and temperature.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
