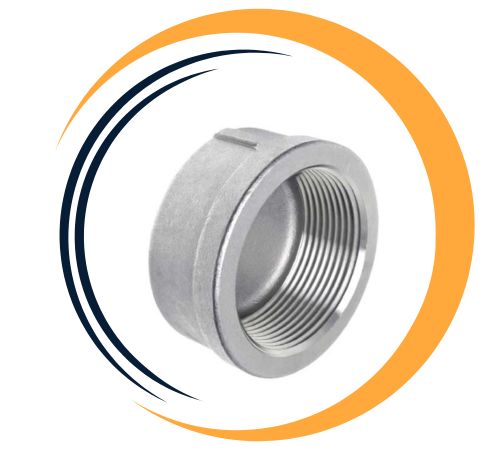

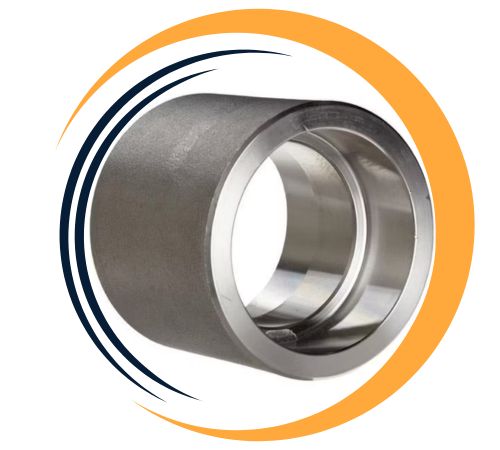

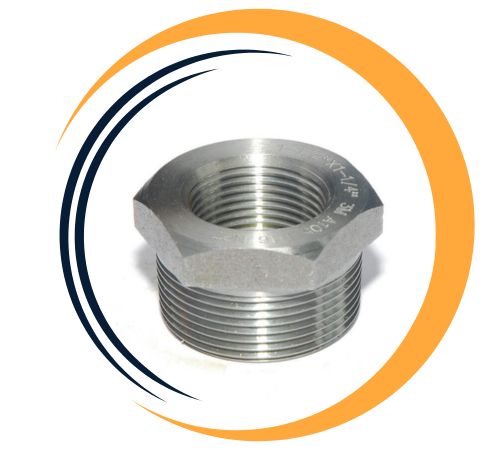

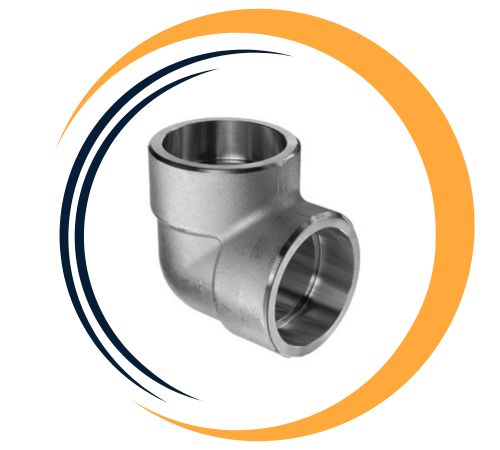

Kanak Fittings is a reputable manufacturer and supplier of Stainless Steel 317/317L Forged Fittings based in Dubai, UAE. We pride ourselves on delivering high-quality, corrosion-resistant solutions tailored for tough industrial settings. Stainless Steel 317 is a high-molybdenum austenitic alloy that provides exceptional resistance to chemical attacks, while 317L, its low-carbon counterpart, is designed for better weldability and enhanced resistance to intergranular corrosion. Our extensive range of forged fittings includes elbows, tees, couplings, unions, plugs, and bushings, all crafted to meet international standards. Kanak Fittings caters to vital sectors such as chemical processing, marine, pulp and paper, and food processing industries throughout the UAE and the broader Middle East.
Specifications : ASTM A182 / ASME SA182
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
The Stainless Steel 317/317L Forged Fittings are made up of 18–20% chromium, 11–15% nickel, 3–4% molybdenum, and a low carbon content in 317L (maximum 0.03%). This unique composition ensures excellent resistance to pitting, crevice corrosion, and chemical attacks in both chloride and acidic environments. These fittings boast impressive mechanical properties, featuring a tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of around 35%. The low carbon variant (317L) is particularly effective in welded applications, minimizing the risk of carbide precipitation and preserving corrosion resistance post-fabrication.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Kanak Fittings is a leading supplier of Stainless Steel 317/317L Forged Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 317/317L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Choose Stainless Steel 317/317L Forged Fittings from Kanak Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 317/317L forged fittings provide excellent corrosion resistance, especially in high chloride environments, making them ideal for chemical, petrochemical, and marine applications These alloys have excellent strength and thermal stability even at higher levels, providing longer service life. The low carbon content of 317L reduces carbide precipitation, increases weldability and reduces the susceptibility to stress corrosion cracking. In addition, they are more resistant to oxidation and pitting, increasing the longevity of the systems. Their high resistance to sulfuric and hydrochloric acids makes them suitable for aggressive chemical applications.
Yes, custom sizes for Stainless Steel 317/317L Forged Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 317 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
Stainless Steel 317/317L Forged Fittings are extensively utilized in highly corrosive environments and applications that demand durability and chemical resistance. They are perfect for chemical and petrochemical processing, pulp and paper manufacturing, food and beverage processing, marine systems, and textile equipment. These fittings excel in environments that involve sulfuric, acetic, formic, and citric acids. Thanks to their outstanding corrosion resistance and strength, SS 317/317L forged fittings are a top choice for systems that face aggressive chemicals, high pressure, and elevated temperatures, ensuring long-lasting reliability and performance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
