| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Stainless Steel 201 Pipe Fittings are crafted from an austenitic stainless steel alloy primarily made up of iron, with about 16–18% chromium, 3.5–5.5% manganese, and 3.5–5.5% nickel. This blend offers moderate resistance to corrosion along with excellent mechanical strength. SS 201 boasts a tensile strength of roughly 520 MPa and a yield strength of about 275 MPa. It also features good hardness and formability. While it may not be as resistant to corrosion as SS 304 or 316, it performs well in less aggressive environments. The material is non-magnetic when annealed and can be cold worked to enhance its strength and hardness.
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |

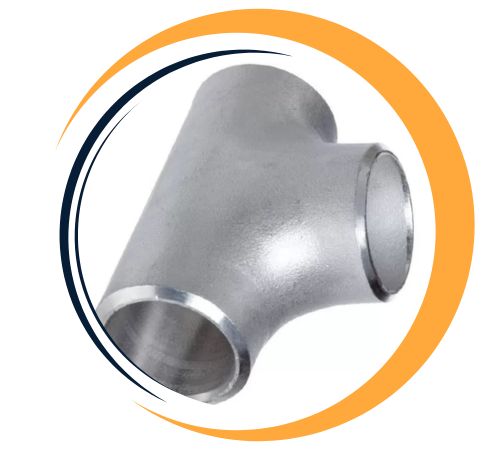

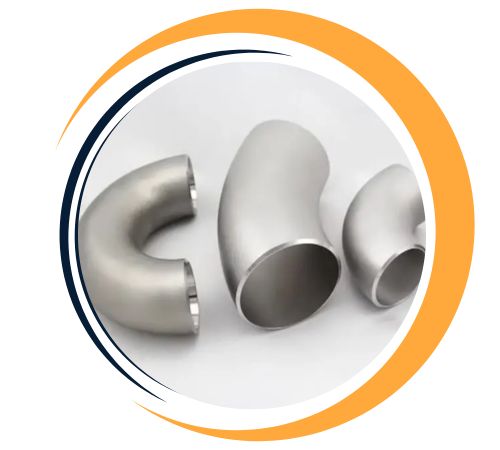

Kanak Fittings one of the largest suppliers of Stainless Steel 201 Pipe Fittings in Dubai, UAE. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 201 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 201 Pipe Fittings in the UAE.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 201 Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Standard | SS 201 |
|---|---|
| UNS | S20100 |
| WERKSTOFF NR. / DIN | 1.4372/ X12CrMnNiN17-7-5 |
Stainless Steel 201 Pipe Fittings offer numerous advantages, including exceptional corrosion resistance, making them ideal for harsh environments. They provide high tensile and yield strength, ensuring durability and reliability in demanding applications. Their lightweight design allows for easier handling and installation, while excellent weldability supports versatile fabrication. These fittings are cost-effective due to lower nickel content, without compromising quality. Additionally, they resist wear and abrasion, ensuring long service life. With superior aesthetic appeal and hygienic properties, Stainless Steel 201 Pipe Fittings are widely used in industries like construction, chemical processing, and food processing.
Yes, custom sizes are available for Stainless Steel 201 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@kanakfittings.ae.
Stainless Steel 201 Pipe Fittings find their place in various applications that demand strength, durability, and moderate corrosion resistance. In the construction and architectural fields, they are utilized in handrails, decorative structures, and support frameworks. In industrial environments, they are used in equipment, piping systems, and structural components where exposure to harsh chemicals is minimal. Additionally, they are found in automotive parts, kitchen equipment, and food processing tools. Thanks to their good formability, weldability, and cost-effectiveness, SS 201 pipe fittings are a smart choice for general-purpose applications that don’t require top-tier corrosion resistance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
