Kanak Fittings stands out as a top-notch manufacturer and supplier of Stainless Steel 310H Pipe Fittings, proudly based in Dubai, UAE. The company is all about delivering high-quality piping solutions that are built to withstand high temperatures and pressures. Stainless Steel 310H, a high-carbon version of SS 310, is perfect for situations where you need extra creep resistance and strength in elevated temperatures. With a strong emphasis on quality, precision, and adherence to global standards, Kanak Fittings caters to various industries, including petrochemical, power generation, furnace manufacturing, and refineries. Their dedication to reliability and customer satisfaction has helped them build a solid reputation both in the UAE and around the world.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

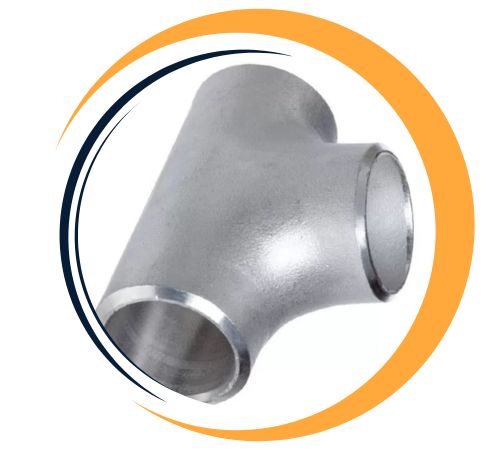

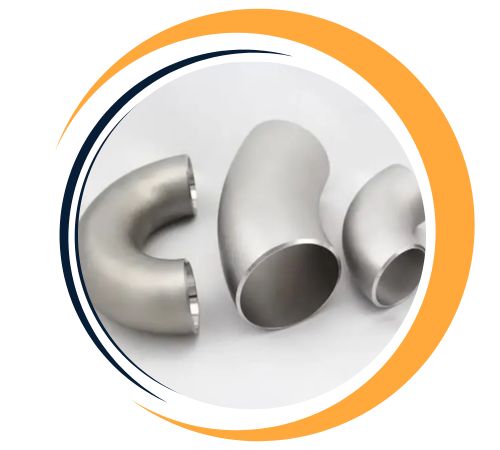

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
When it comes to composition, Stainless Steel 310H Pipe Fittings are primarily made up of iron, chromium (24–26%), and nickel (19–22%), featuring a higher carbon content (0.04–0.10%) than standard 310 grades. This boost in carbon enhances their strength and creep resistance at high temperatures. Typically, these fittings showcase a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, with an elongation of around 40%. Even at temperatures over 1000°C, 310H maintains its structural integrity and oxidation resistance, making it a go-to choice for environments where heat and pressure are constant challenges.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.0 | 0.045 | 0.030 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Kanak Fittings one of the largest suppliers of Stainless Steel 310H Pipe Fittings in Dubai, UAE. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 310H is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 310H Pipe Fittings in the UAE.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 310H Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | X5CrNi18-10 | 2332 | SUS 310H | ||
Stainless Steel 310H Pipe Fittings offer exceptional heat resistance, making them ideal for high-temperature applications up to 1100°C. The higher carbon content enhances creep resistance and improves mechanical strength at elevated temperatures. These fittings provide excellent oxidation and corrosion resistance, especially in sulfurous and acidic environments. Stainless Steel 310H fittings maintain structural integrity in extreme conditions and offer superior durability under high-pressure and thermal cycling environments. They also exhibit good weldability and ease of fabrication, making them a reliable choice for industries like power generation, chemical processing, and petrochemical.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 310H Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@kanakfittings.ae.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
You’ll find Stainless Steel 310H Pipe Fittings in high-temperature applications across a range of industries. In power generation and petrochemical plants, they’re used in heat exchangers, superheaters, and boiler components that face extreme thermal conditions. Refineries rely on them for furnaces, radiant tubes, and reformers where high temperatures and corrosive gases are the norm. They’re also utilized in cement plants, incinerators, and thermal processing units. Thanks to their durability and resistance to oxidation, 310H fittings are crucial for operations that require long-term exposure to intense heat, pressure, and harsh environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
