Kanak Fittings has established itself as a reliable name in the manufacturing and supply of top-notch pipe fittings in Dubai, UAE. With a focus on Stainless Steel 309 Pipe Fittings, the company offers high-performance products that adhere to global standards. Thanks to their state-of-the-art manufacturing facilities and unwavering commitment to quality, Kanak Fittings provides robust and dependable solutions for a variety of industries, including petrochemicals, oil and gas, construction, and power generation. Known for their precision and durability, Kanak Fittings remains a go-to partner for innovative and cost-effective piping solutions tailored to meet industrial demands.
| Specifications | : | ASTM A403 ASME SA 182 |
| Tube Size | : | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
Stainless Steel 309 Pipe Fittings are made up of a high content of chromium (22-24%) and nickel (12-15%), which gives them outstanding resistance to oxidation and corrosion. They boast impressive mechanical properties, such as high tensile strength, ductility, and toughness, even when exposed to high temperatures. Built to endure thermal cycling, these fittings maintain their structural integrity in environments reaching up to 1035°C. The addition of elements like manganese, silicon, and sulfur improves their weldability and machinability. Meeting ASTM, ASME, and DIN standards, these fittings are incredibly durable and reliable for critical applications.
| Grade | C | Mn | Si | P | S | Cr | Ni | FE |
| SS 309 | 0.20 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 22.0 – 24.0 | 12.0 – 15.0 | Balance |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 309 | 7.8 g/cm3 | 1200 ℃ | 586 MPa | 310 MPa | 40 % | 202 |

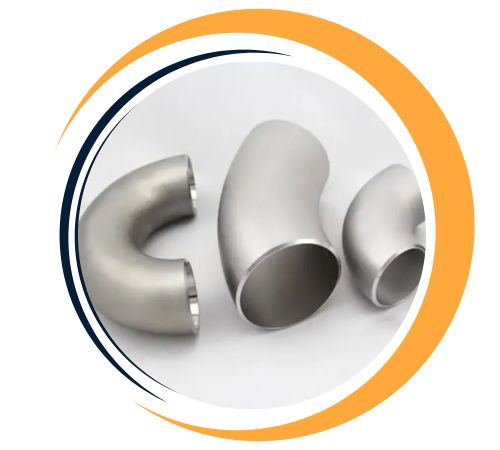

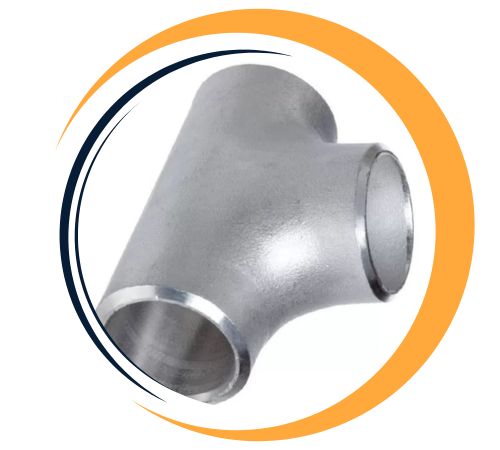

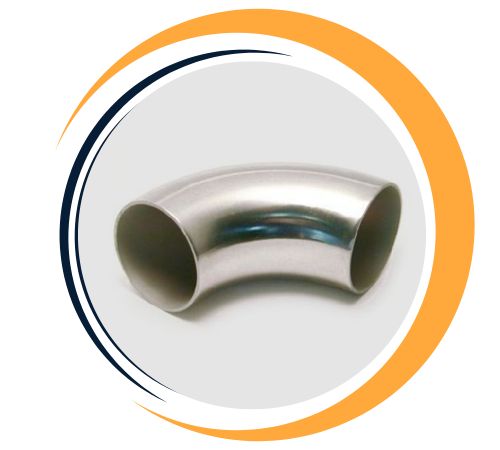

Kanak Fittings one of the largest suppliers of Stainless Steel 309 Pipe Fittings in Dubai, UAE. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 309 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 309 Pipe Fittings in the UAE.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309 Pipe Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
| SS 309 | S30900 | 1.4828 | – | – | SUS 309 | – | – |
Stainless Steel 309 Pipe Fittings offer superior heat resistance, making them ideal for high-temperature applications up to 1000°C. Their excellent oxidation and corrosion resistance ensure durability in harsh environments, including those exposed to acids and high humidity. These fittings exhibit high tensile and yield strength, ensuring reliability in demanding industrial settings. Easy to fabricate and weld, they maintain structural integrity during thermal cycling. With good toughness and creep resistance, Stainless Steel 309 fittings are perfect for applications in furnaces, heat exchangers, and petrochemical industries, delivering long-lasting performance and versatility.
| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Yes, custom sizes are available for Stainless Steel 309 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@kanakfittings.ae.
Stainless Steel 309 Pipe Fittings are commonly found in high-temperature and corrosive settings, making them perfect for industries like chemical processing, petrochemicals, refineries, and power plants. Their remarkable resistance to oxidation and thermal fatigue guarantees dependable performance in heat exchangers, furnaces, and boilers. These fittings are also essential in constructing pipelines that transport corrosive chemicals and high-temperature gases. With their durability, corrosion resistance, and strength, they are well-suited for use in marine environments, food processing facilities, and other demanding industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
