Kanak Fittings stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 316/316L Forged Fittings right in the heart of Dubai, UAE. Known for their precision engineering and adherence to international standards, these fittings are built to endure extreme conditions across a variety of industries. Thanks to cutting-edge manufacturing techniques and rigorous quality control, Kanak Fittings guarantees products that are not only durable and corrosion-resistant but also high-performing. They cater to sectors such as oil and gas, petrochemicals, and water treatment, making them a reliable partner for delivering effective and budget-friendly piping solutions tailored to meet the unique needs of their customers.
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 316/316L Forged Fittings are crafted from austenitic stainless steel, which includes elements like chromium, nickel, and molybdenum, with a low carbon content in 316L to improve weldability and minimize carbide precipitation. These fittings boast impressive mechanical properties, such as high tensile and yield strength, outstanding corrosion resistance, and thermal stability even in extreme temperatures. By adhering to standards like ASTM A182 and ASME B16.11, they ensure reliability, durability, and top-notch performance, making them perfect for demanding industrial applications.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | min. | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – | |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| 316L | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
Kanak Fittings is a leading supplier of Stainless Steel 316 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 316L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 Fittings | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L Fittings | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316 / 316L Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 316/316L Buttweld Fittings provide excellent corrosion resistance, especially in harsh environments such as the marine and chemical industry, and the presence of molybdenum provides superior strength, durability and superior heat resistance against, making it ideal for important projects. The lower carbon content of 316L reduces the risk of sensitivity and intergranular corrosion, and enhances weldability. These materials are highly resistant to pitting and cravis corrosion, providing long service life. In addition, it is inert, easy to maintain, and provides flexible and leak-proof connections to plumbing systems.

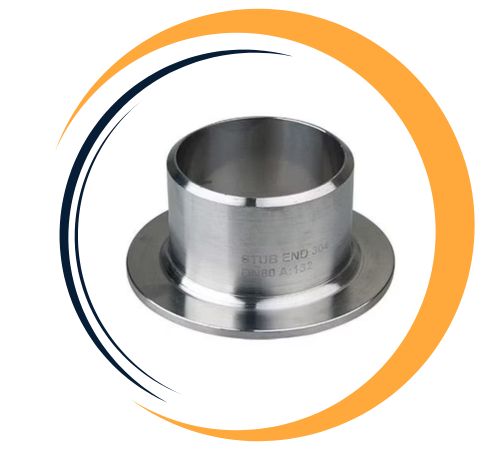

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |

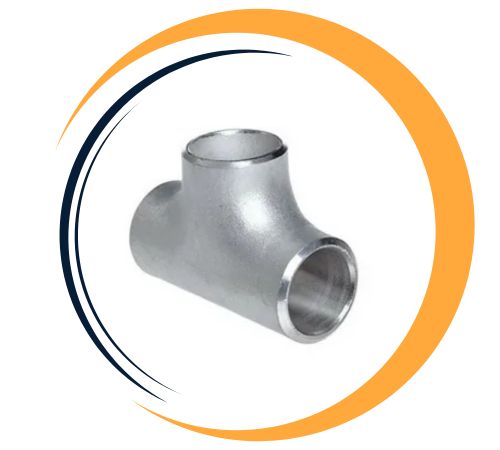

| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Stainless Steel 316 / 316L Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Stainless Steel 316/316L Forged Fittings find their place in a variety of industries, including oil and gas, marine, chemical processing, pharmaceuticals, and food and beverage. Renowned for their remarkable resistance to corrosion, pitting, and oxidation, they are perfect for managing corrosive fluids and gases. These fittings play a vital role in connecting, redirecting, and controlling flow in piping systems that operate under high pressure and temperature. With their exceptional mechanical properties and versatility, they ensure safe and efficient operations even in challenging environments, such as offshore platforms and chemical plants.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
