Stainless Steel 317 / 317L Buttweld Fittings Manufacturer and Supplier in Dubai, UAE

Kanak Fittings stands out as a trusted manufacturer and supplier of Stainless Steel 317/317L Buttweld Fittings in Dubai, UAE. We pride ourselves on delivering top-notch corrosion-resistant solutions tailored for demanding industrial applications. Stainless Steel 317 is a high-alloy austenitic grade enriched with molybdenum, which boosts its resistance to chemical attacks and pitting. On the other hand, 317L is the low-carbon variant that enhances weldability and helps prevent intergranular corrosion. Our extensive range of buttweld fittings includes elbows, tees, reducers, and caps, all crafted to meet global standards. Kanak Fittings is dedicated to supporting vital industries such as chemical processing, marine, food, and pharmaceuticals across the UAE and beyond.

Stainless Steel 317 Pipe Elbow In UAE, Stainless Steel 317L Pipe Fittings Sharjah, SS 317 Buttweld Elbow Dubai, Stainless Steel S31700 Seamless Fittings Exporter Abu Dhabi, Stainless Steel 1.4449 Butt Weld Pipe Fittings in Jebel Ali, Stainless Steel 317 Two Joint Pipe Fittings Al Ain, 317L Stainless Steel Welded Fittings Manufacturers in Ajman, Stainless Steel 317 Buttweld Fittings In UAE, ASTM A403 WP3 317L Stainless Steel Buttweld Fittings Supplier in Dubai, UAE.

Stainless Steel 317 / 317L Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP317)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 317
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Our Stainless Steel 317/317L Buttweld Fittings are made up of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, with 317L featuring a maximum carbon content of just 0.03%. This unique composition ensures outstanding resistance to pitting, crevice corrosion, and general chemical attacks, especially in acidic and chloride-rich environments. These fittings boast impressive mechanical properties, including a tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of about 35%. The low carbon content in 317L helps minimize carbide precipitation, which in turn preserves corrosion resistance even after welding and exposure to heat.

Stainless Steel 317 / 317L Buttweld Fittings Chemical Composition

Grade	C	Ni	Mn	P	S	Cr	Si	Mo	Fe
317	0.08 max	11.00 – 15.00	2 max	0.045 max	0.030 max	18.00 – 20.00	1 max	3.00 – 4.00	57.845 min

Stainless Steel 317 / 317L Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 317 Buttweld Fittings Cross in UAE, Stainless Steel 1.4449 Buttweld Pipe Fittings Sharjah, SS 317L Butt Weld Pipe Cap Dubai, Stainless Steel 317 Eccentric Reducer Abu Dhabi, Stainless Steel 317L Equal Tee Jebel Ali, 317 Stainless Steel Reducer in Al Ain, Stainless Steel 317L SR Elbow Exporter in Ajman,

Largest Stainless Steel 317 / 317L Buttweld Fittings Supplier in Dubai, UAE

Kanak Fittings is a leading supplier of Stainless Steel 317 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 317L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 317 / 317L Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
317	1.4449	S31700	SUS 317	–	–	–	–

Why Choose Stainless Stainless Steel 317 / 317L Buttweld Fittings from Kanak Fittings?

Stainless Steel 317 Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31700 Stub End Uk, ANSI B16.9 Stainless Steel 317L Pipe Fittings Sharjah, Stainless Steel 317 Pipe Bend Stockist in Dubai, Stainless Steel 317L Pipe Nipple Manufacturer & Exporter in Abu Dhabi, Stainless Steel 1.4449 Butt Weld Pipe Fittings in Jebel Ali, Stainless Steel 317 Pipe Two Joint Pipe Fittings Al Ain, 317L Stainless Steel Pipe Welded Fittings Manufacturers in Ajman, Stainless Steel 317 Pipe Butt weld Fittings In UAE, ASTM A403 Stainless Steel 317L Pipe Butt Weld Fittings Supplier in Dubai, UAE.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Stainless steel 317/317L Buttweld Fittings provide exceptional corrosion resistance, especially in high acid and chloride environments. The low carbon content of 317L prevents carbide precipitation, enhances weldability and reduces the risk of intergranular corrosion. These materials retain high strength and durability at elevated temperatures, making them suitable for a variety of industrial applications. Excellent resistance to pitting, crevice corrosion and stress corrosion cracking ensures long-term performance. In addition they are highly versatile, and can withstand extreme weather conditions, making them ideal for the chemical, fuel and pharmaceutical industries

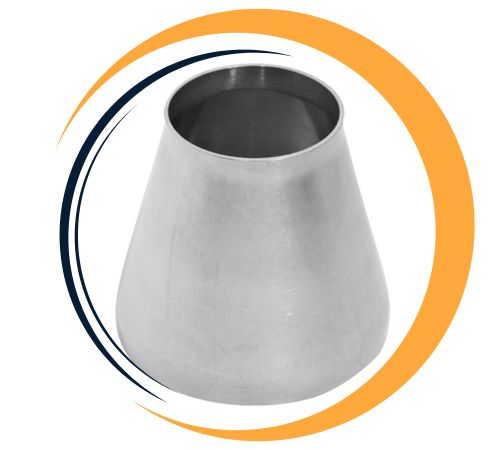

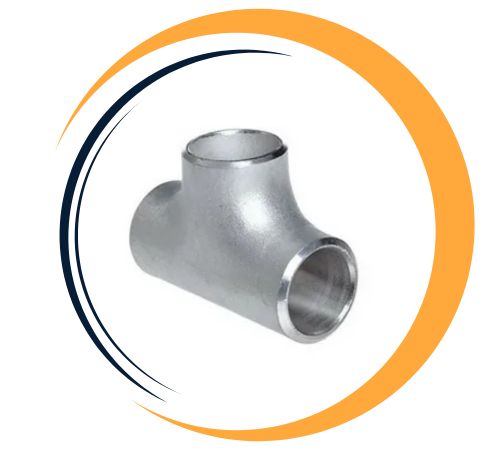

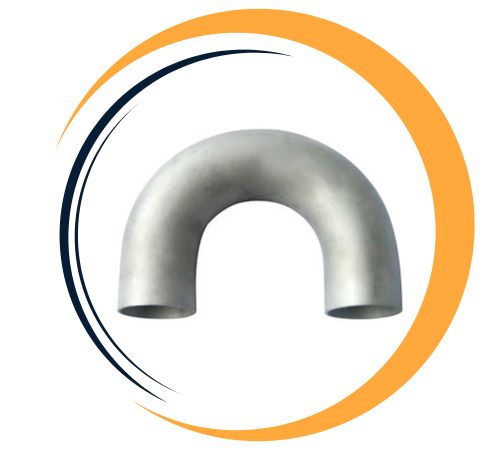

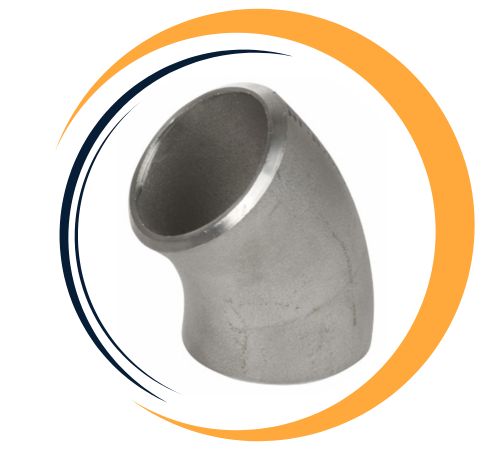

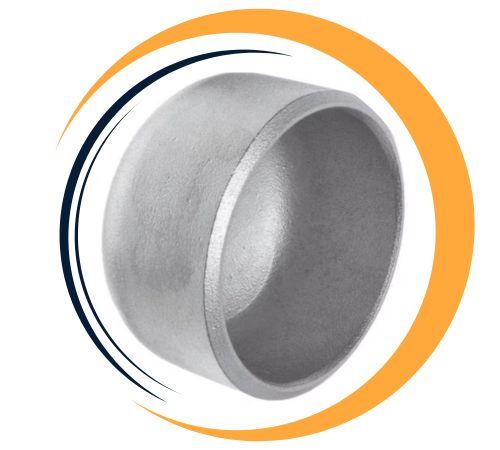

Types of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317 / 317L Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 317 / 317L Buttweld Fittings?

Yes, custom sizes for Stainless Steel 317 / 317L Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.

ASTM A403 Stainless Steel 317 Butt Weld Cross in UAE, Stainless Steel 1.4449 Buttweld Pipe Fittings Sharjah, SS 317L Butt Weld Pipe Cap Dubai, Stainless Steel 317 Eccentric Reducer Abu Dhabi, Stainless Steel 317L Equal Tee Jebel Ali, 317 Stainless Steel Reducer in Al Ain, SS 317L SR Elbow Exporter in Ajman,

Application Industry of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317/317L Buttweld Fittings are essential in industries where exceptional corrosion resistance is a must, particularly in harsh chemical settings. They find applications in piping systems for chemical processing, pulp and paper manufacturing, food and beverage production, wastewater treatment, and marine engineering. These fittings excel at handling sulfuric, acetic, citric, and formic acids. With their excellent weldability, robust mechanical strength, and resistance to localized corrosion, SS 317/317L buttweld fittings are a dependable and durable choice for high-pressure and high-temperature service conditions.
