Kanak Fittings is a reputable manufacturer and supplier of Stainless Steel 904L Buttweld Fittings based in Dubai, UAE. We provide top-notch fittings designed for highly corrosive and demanding environments. Our product lineup features elbows, tees, reducers, caps, and stub ends, all meticulously crafted to meet international standards. Renowned for their exceptional corrosion resistance and durability, our 904L buttweld fittings are perfect for industries like chemical processing, oil & gas, marine, and pharmaceuticals. With a strong commitment to quality, performance, and customer satisfaction, Kanak Fittings proudly serves a diverse clientele across the UAE and the Middle East.
| Grade | SS 904L | UNS N08904 |
| Standard | ASTM B366 / ASME SB366 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |

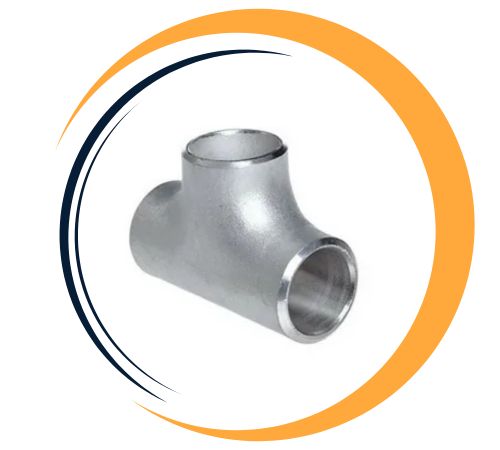

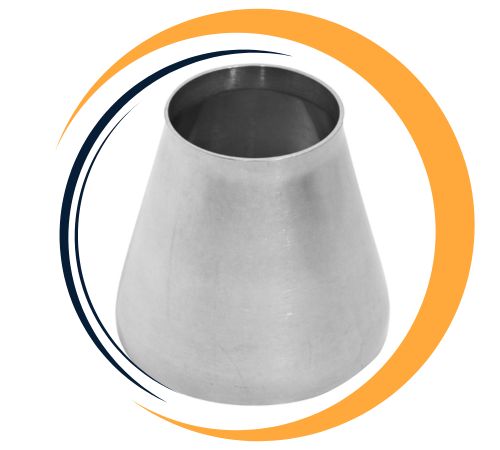

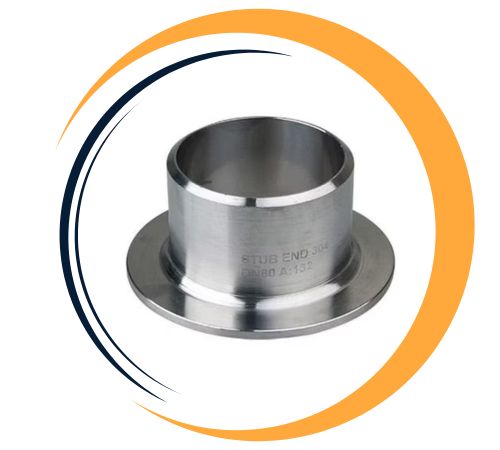

| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
Our Stainless Steel 904L Buttweld Fittings are made from a high-alloy, low-carbon austenitic stainless steel that contains 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper. This unique composition ensures outstanding resistance to strong acids, pitting, and chloride-induced corrosion. These fittings boast impressive mechanical properties, including a tensile strength of up to 710 MPa and a yield strength of around 220 MPa. Their high toughness, formability, and weldability make them ideal for challenging and corrosive industrial settings.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Kanak Fittings is a leading supplier of Stainless Steel 317 Buttweld Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 317L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Stainless Steel 904L Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 904L Buttweld Fittings provide excellent corrosion resistance, especially in aggressive environments with high concentrations of acids such as sulfuric acid. They are highly resistant to pitting and crevice corrosion, making them ideal for applications in the chemical, petrochemical and marine industries. The high molybdenum and nickel content of the alloy provides high strength and toughness even at elevated temperatures. Furthermore, these materials retain their structural integrity and function under oxidation reduction conditions. Their versatility, strength, and durability make them important application candidates.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 904L Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.
Stainless Steel 904L Buttweld Fittings are extensively utilized in applications where superior corrosion resistance and structural integrity are essential. They are particularly suited for industries such as chemical and petrochemical processing, oil and gas refining, marine systems, pharmaceuticals, and pollution control equipment. These fittings excel in handling sulfuric acid, phosphoric acid, and chloride-bearing solutions. Their robust design makes them perfect for use in heat exchangers, pressure vessels, and high-temperature pipelines. With a long service life, leak-proof connections, and exceptional resistance to harsh environments, 904L buttweld fittings are a dependable choice for critical piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
