Stainless Steel 316TI Buttweld Fittings Manufacturer and Supplier in Dubai, UAE

Kanak Fittings is a reputable manufacturer and supplier of top-quality Stainless Steel 316Ti Buttweld Fittings based in Dubai, UAE. We pride ourselves on providing durable and corrosion-resistant fittings that adhere to international quality standards. Stainless Steel 316Ti, which is a titanium-stabilized variant of 316, is specifically engineered to enhance resistance to sensitization and intergranular corrosion, particularly in high-temperature settings. Our extensive product range features elbows, tees, reducers, and caps that cater to a variety of industrial needs. With a commitment to precision engineering, prompt delivery, and customer satisfaction, Kanak Fittings has become the go-to choice for dependable SS 316Ti Buttweld Fittings throughout the Middle East and beyond.

Stainless Steel 316TI Pipe Elbow In UAE, Stainless Steel 316TI Pipe Fittings Sharjah, SS 316TI Buttweld Elbow Dubai, Stainless Steel S31635 Seamless Fittings Exporter Abu Dhabi, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Jebel Ali, Stainless Steel 316TI Two Joint Pipe Fittings Al Ain, 316TI Stainless Steel Welded Fittings Manufacturers in Ajman, Stainless Steel 316TI Buttweld Fittings In UAE, ASTM A403 WP3 316TI Stainless Steel Buttweld Fittings Supplier in Dubai, UAE.

Stainless Steel 316TI Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP316Ti)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 316Ti
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

These Stainless Steel 316Ti Buttweld Fittings consist of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and up to 0.7% titanium, which boosts stability at higher temperatures. The inclusion of titanium helps prevent carbide precipitation during welding or when exposed to heat. These fittings are known for their outstanding corrosion resistance, especially in oxidizing and chloride-rich environments. Their mechanical properties include a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 40%. The alloy retains its structural integrity even at elevated temperatures, offering exceptional durability, making it perfect for critical applications in demanding service conditions.

Stainless Steel 316TI Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316TI Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 316TI Buttweld Fittings Cross in UAE, Stainless Steel 1.4571 Buttweld Pipe Fittings Sharjah, SS 316TI Butt Weld Pipe Cap Dubai, Stainless Steel 316TI Eccentric Reducer Abu Dhabi, Stainless Steel 316TI Equal Tee Jebel Ali, 316TI Stainless Steel Reducer in Al Ain, Stainless Steel 316TI SR Elbow Exporter in Ajman,

Largest Stainless Steel 316TI Buttweld Fittings Supplier in Dubai, UAE

Kanak Fittings is a leading supplier of Stainless Steel 316TI Buttweld Fittings in Dubai, UAE. We offer an extensive range of Stainless Steel 316TI Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 316TI Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2

Why Choose Stainless Steel 316TI Buttweld Fittings from Kanak Fittings?

Stainless Steel 316TI Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31635 Stub End Uk, ANSI B16.9 Stainless Steel 316TI Pipe Fittings Sharjah, Stainless Steel 316TI Pipe Bend Stockist in Dubai, Stainless Steel 316TI Pipe Nipple Manufacturer & Exporter in Abu Dhabi, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Jebel Ali, Stainless Steel 316TI Pipe Two Joint Pipe Fittings Al Ain, 316TI Stainless Steel Pipe Welded Fittings Manufacturers in Ajman, Stainless Steel 316TI Pipe Butt weld Fittings In UAE, ASTM A403 Stainless Steel 316TI Pipe Butt Weld Fittings Supplier in Dubai, UAE.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Stainless steel 316TI Buttweld Fittings provide excellent corrosion resistance, especially in high chloride environments, making them ideal for marine and chemical applications The addition of titanium increases the alloy’s sensitivity during welding and resistance intergranular corrosion. These materials provide excellent strength and durability at high temperatures and are highly resistant to oxidation. They are also more versatile, offer better manufacturability and weldability, and provide reliable, durable durability in harsh environments. Furthermore, 316TI fittings maintain structural integrity even under cyclic loading conditions, ensuring safety and reliability in critical applications.

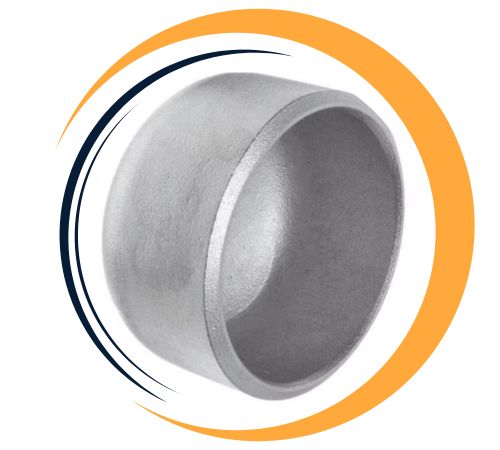

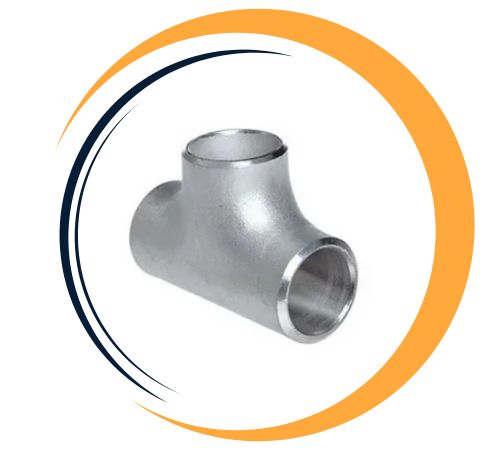

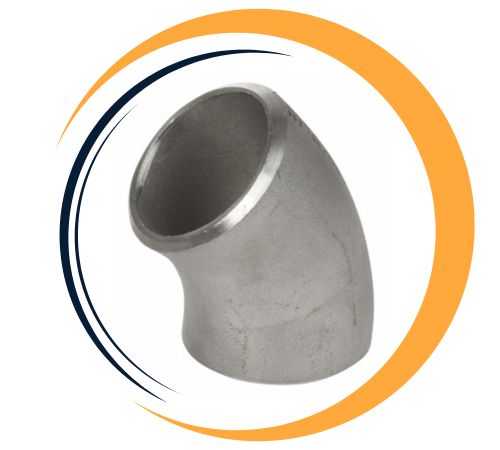

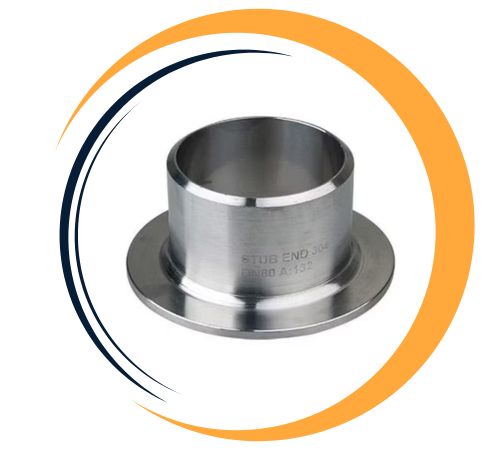

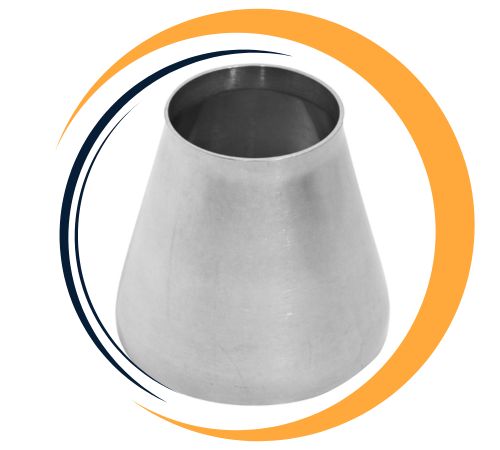

Types of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 316TI Buttweld Fittings?

Yes, custom sizes for Stainless Steel 316TI Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.

ASTM A403 Stainless Steel 316TI Butt Weld Cross in UAE, Stainless Steel 28011 Buttweld Pipe Fittings Sharjah, SS 316TI Butt Weld Pipe Cap Dubai, Stainless Steel 316TI Eccentric Reducer Abu Dhabi, Stainless Steel 316TI Equal Tee Jebel Ali, 316TI Stainless Steel Reducer in Al Ain, SS 316TI SR Elbow Exporter in Ajman,

Application Industry of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316Ti Buttweld Fittings are commonly utilized in scenarios that require long-lasting resistance to high temperatures and corrosive environments. They find extensive use in chemical processing, pharmaceuticals, food and beverage industries, and heat exchanger systems. Their ability to resist intergranular corrosion makes them particularly suitable for equipment that experiences frequent heating and cooling cycles. Moreover, these fittings are also employed in marine settings, power generation facilities, and the oil & gas sector due to their resilience against chloride stress and harsh operating conditions. SS 316Ti fittings seamlessly blend strength, corrosion resistance, and durability, making them an excellent choice for a wide range of applications.
