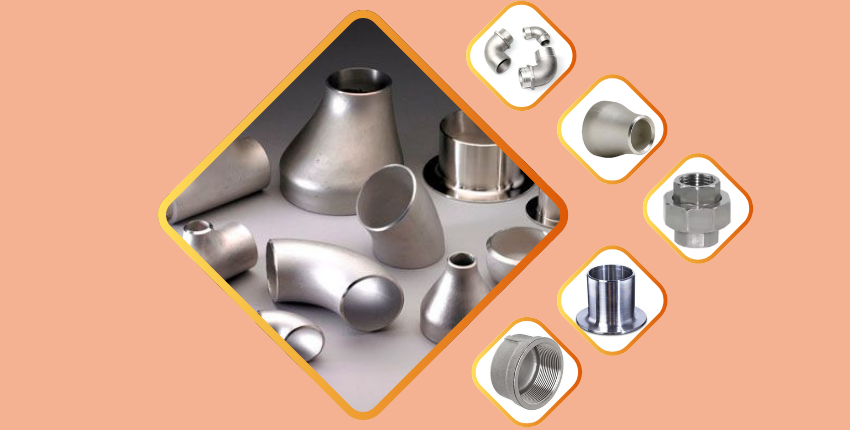

Kanak Fittings is a well-known manufacturer and supplier of Stainless Steel Buttweld Fittings based in Dubai, UAE. We specialize in providing top-notch piping solutions tailored for a variety of industrial applications. Our product lineup features elbows, tees, reducers, caps, and stub ends, all crafted to meet international standards. Renowned for their durability, strength, and resistance to corrosion, our stainless steel buttweld fittings are perfect for high-temperature and high-pressure settings. We serve a diverse range of industries, including oil & gas, petrochemicals, power generation, water treatment, and marine engineering, delivering products that guarantee reliability, precision, and long-lasting performance throughout the UAE and beyond.
| Grade | SS 304 | Stainless Steel 304 | UNS S30400 |
| Standard | ASTM A403 / ASME SA403 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |

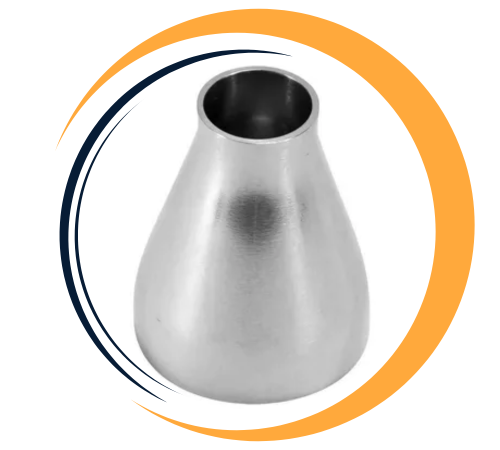

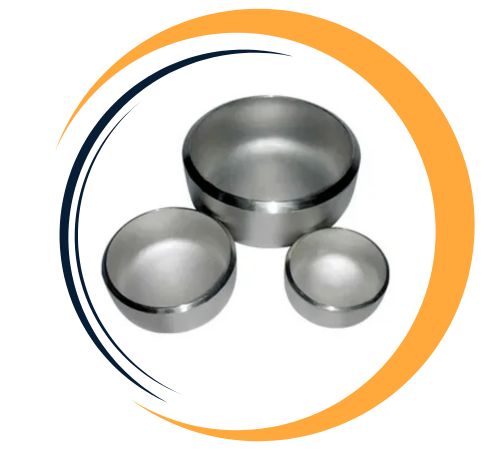

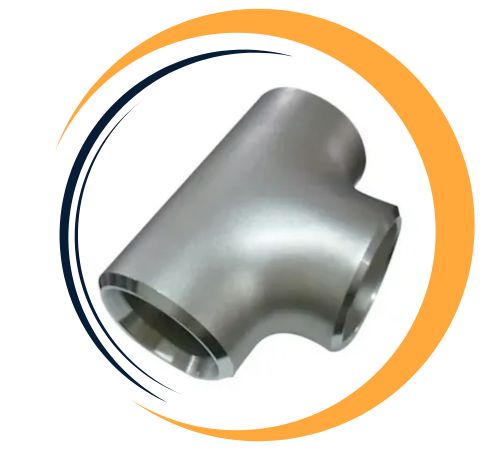

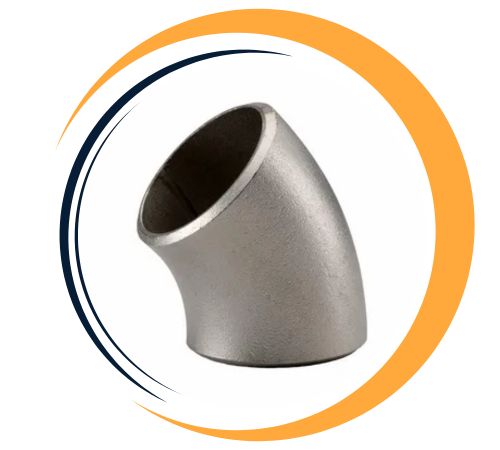

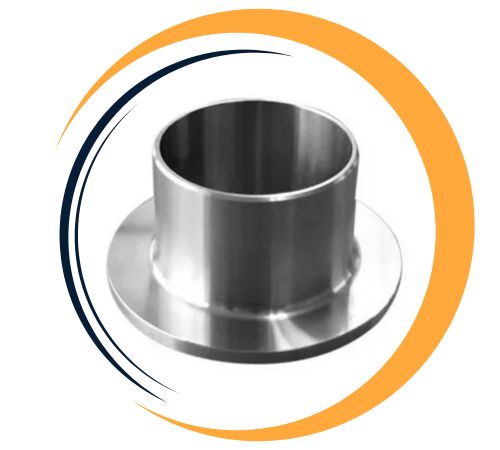

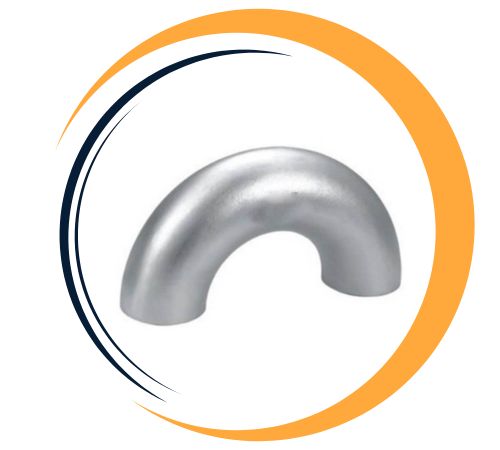

| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
Our Stainless Steel Buttweld Fittings are typically made from austenitic grades such as 304, 304L, 316, and 316L, which contain 18–20% chromium and 8–14% nickel. The 316 grades also include molybdenum for improved corrosion resistance. These fittings boast impressive mechanical properties, with tensile strength reaching up to 700 MPa and yield strength around 275 MPa. Their exceptional resistance to corrosion, oxidation, and stress cracking, combined with high toughness and excellent weldability, makes them ideal for challenging applications in corrosive and high-temperature environments.
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 | – |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 10.5 | – |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Kanak Fittings is a leading supplier of Stainless Steel Buttweld Fittings in Dubai, UAE. We offer an extensive range of Nickel Alloy 201 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel Buttweld Fittings from Kanak Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
The stainless steel buttweld fitting provides excellent corrosion resistance, and durability in harsh environments. They provide a seamless, smooth surface, reducing turbulence and pressure loss in pipes. These materials are ideal for high-pressure and thermal systems and maintain structural integrity by eliminating frequent joint movements. They are easy to install, cost effective and require little maintenance. Because of their high tensile strength, they resist deformation and withstand mechanical stresses. Available in a variety of sizes and configurations, they are suitable for a variety of industries, including chemical, oil and gas. Their aesthetic finish also makes them suitable for architectural use.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel Buttweld Fittings are available at Kanak Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@kanakfittings.ae.

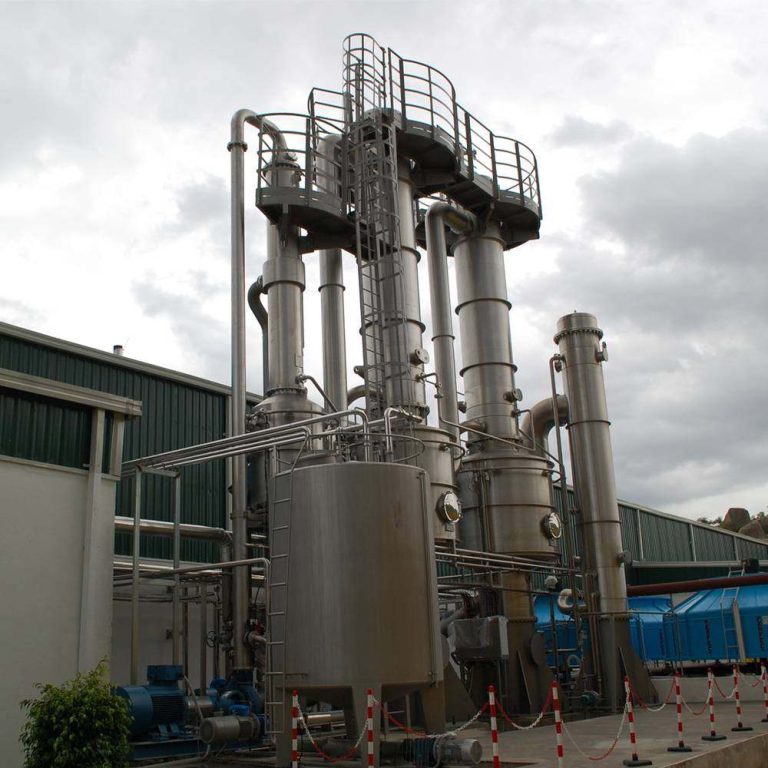

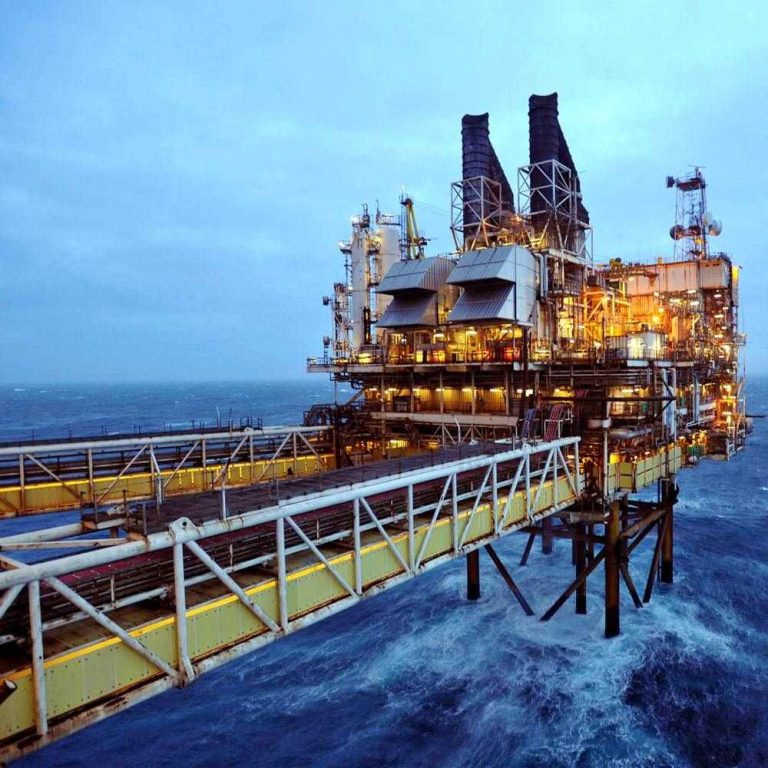

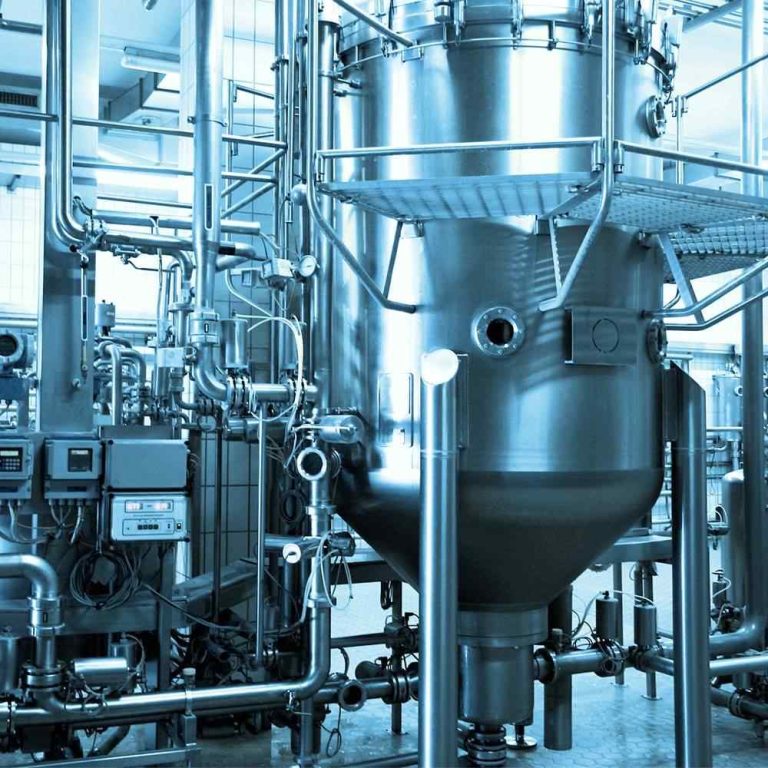

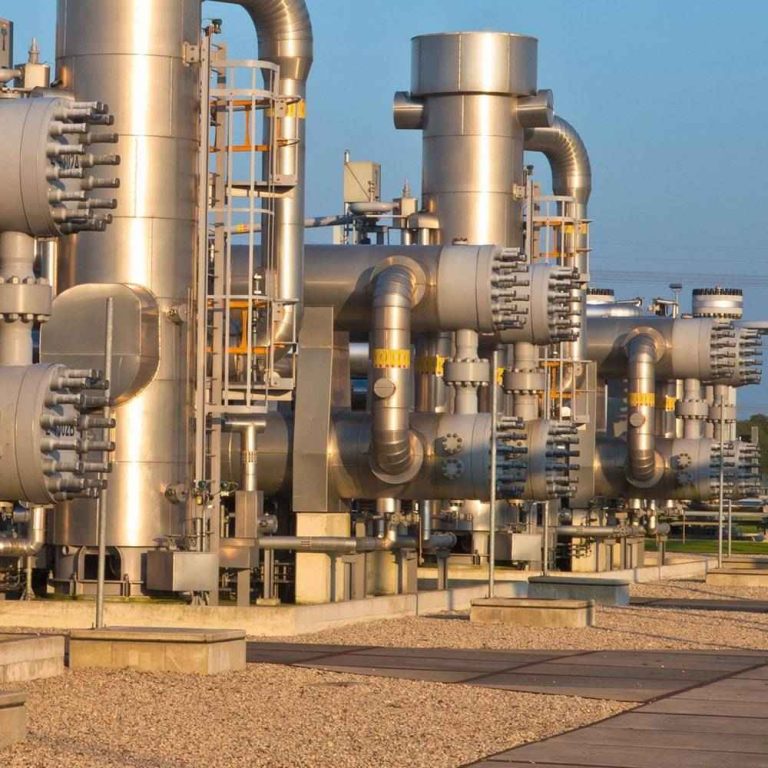

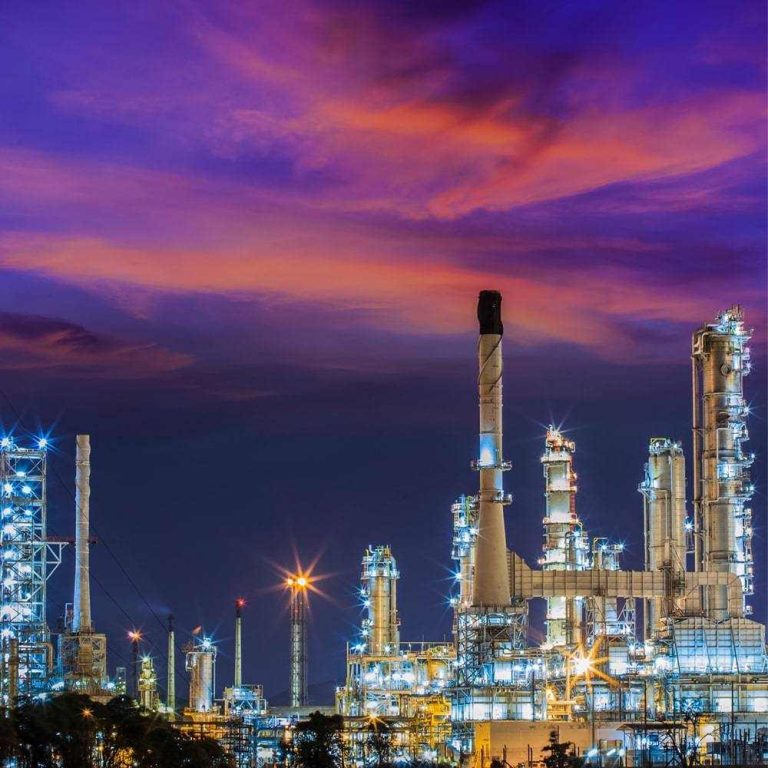

Stainless Steel Buttweld Fittings are extensively used in industries that demand robust, leak-proof piping systems with outstanding corrosion resistance. You’ll find them in oil and gas refineries, chemical processing plants, power generation facilities, water treatment plants, and food and beverage manufacturing. These fittings are particularly suited for high-pressure pipelines, heat exchangers, condensers, and boiler systems. Their smooth inner surfaces minimize friction losses and prevent buildup, ensuring efficient fluid flow. With strong weld joints and a long service life, stainless steel buttweld fittings are a dependable choice for critical operations in harsh and corrosive conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
